87720-50 800kg Unbraked Trailer Coupling for 50 × 50mm Square Drawbars
Zinc-Plated Pressed Steel Coupling Head for 50mm Tow Balls, with Top and Side Mounting Holes (R55 Approved)
| Item | Specification |
|---|---|
| Product Type | Trailer Hitch Ball Coupler |
| Trailer Type | Unbraked |
| Maximum Trailer Weight | 800 kg |
| Tow Ball Size | 50 mm |
| Drawbar Size | 50 × 50 mm Square |
| Material | Pressed Steel |
| Surface Finish | Zinc Plated |
| Approval | E57 |
| Mounting | Side & Top Holes |
| Lock | Not Included (Optional) |
| Net Weight | 1.2 kg |
| Market | Europe (EU) |
Certificates
Q1. Which drawbar size does this trailer coupling fit?

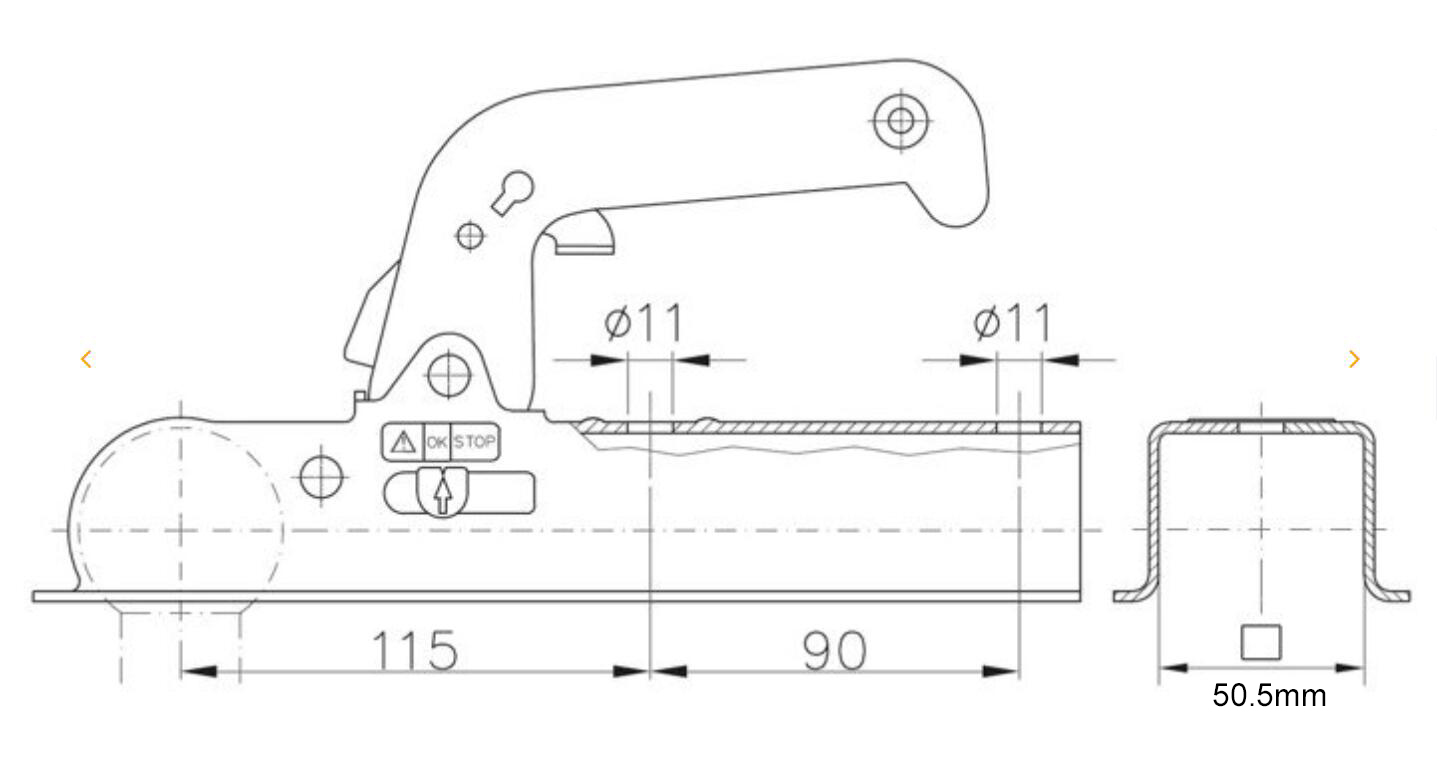

This version is designed for a 50 × 50mm square tube drawbar. Confirm the mounting hole positions, tube construction and required fasteners against the coupling drawing before installation.
Q2. What tow ball size is required?
The coupling is designed for a 50mm tow ball. Check the ball size and condition before use, and follow the coupling’s operating instructions.
Q3. Does the 800kg rating mean an 800kg unbraked trailer is permitted on European roads?
No. The stated 800kg capacity describes the coupling component. The complete trailer’s permitted mass and braking requirements depend on its approval, the towing vehicle and applicable regulations. The coupling rating does not override those limits.
Q4. Is this suitable for a braked trailer coupling system?
This version is specified for unbraked trailers. For a braked trailer, select a coupling and braking assembly expressly documented for the intended system.
Q5. What does the E57 marking mean?
E57 identifies San Marino as the approval-granting country under the UN vehicle approval marking system. The complete marking and certificate identify the applicable regulation, approved model and approval conditions.
Q6. Can the top and side mounting holes be used interchangeably?
Use the mounting arrangement specified for the approved model. The presence of holes on multiple faces does not establish that every fastening combination is suitable. Confirm bolt positions, fastener grade and tightening torque from the installation instructions.
Q7. Is a coupling lock included?
No. The coupling is supplied without a lock. Confirm the compatible lock model when specifying optional security accessories.
Q8. Which soft dock is compatible?
The specified compatible accessory is soft dock Ref. 87717. Include this reference in the quotation request if it is required with the coupling.
