Specifications:

Material: Copper + TPU + Aluminum Alloy
Contact material: copper
Color: Silver + Black
Output Voltage: DC 12V
Working line length: about 2.8m

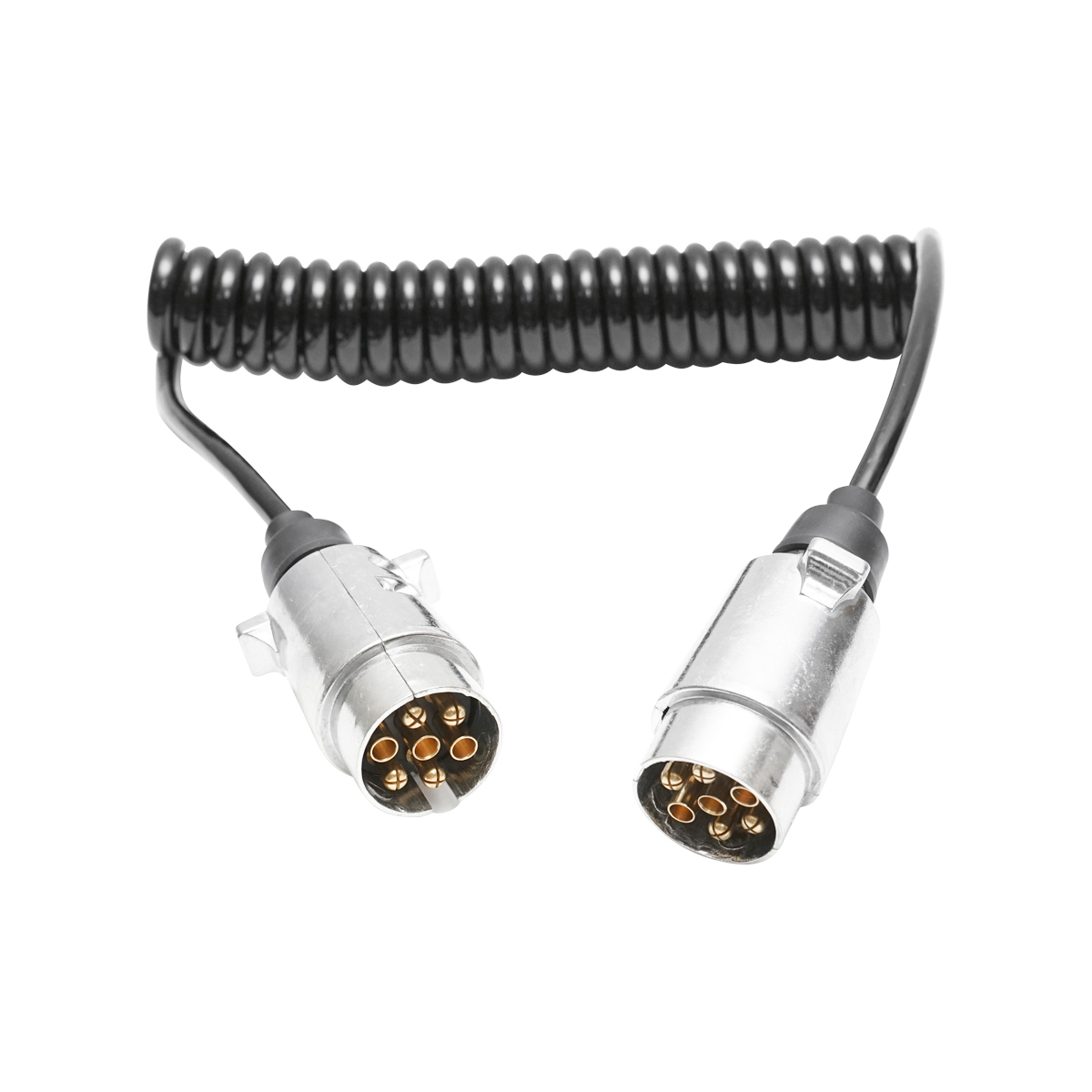

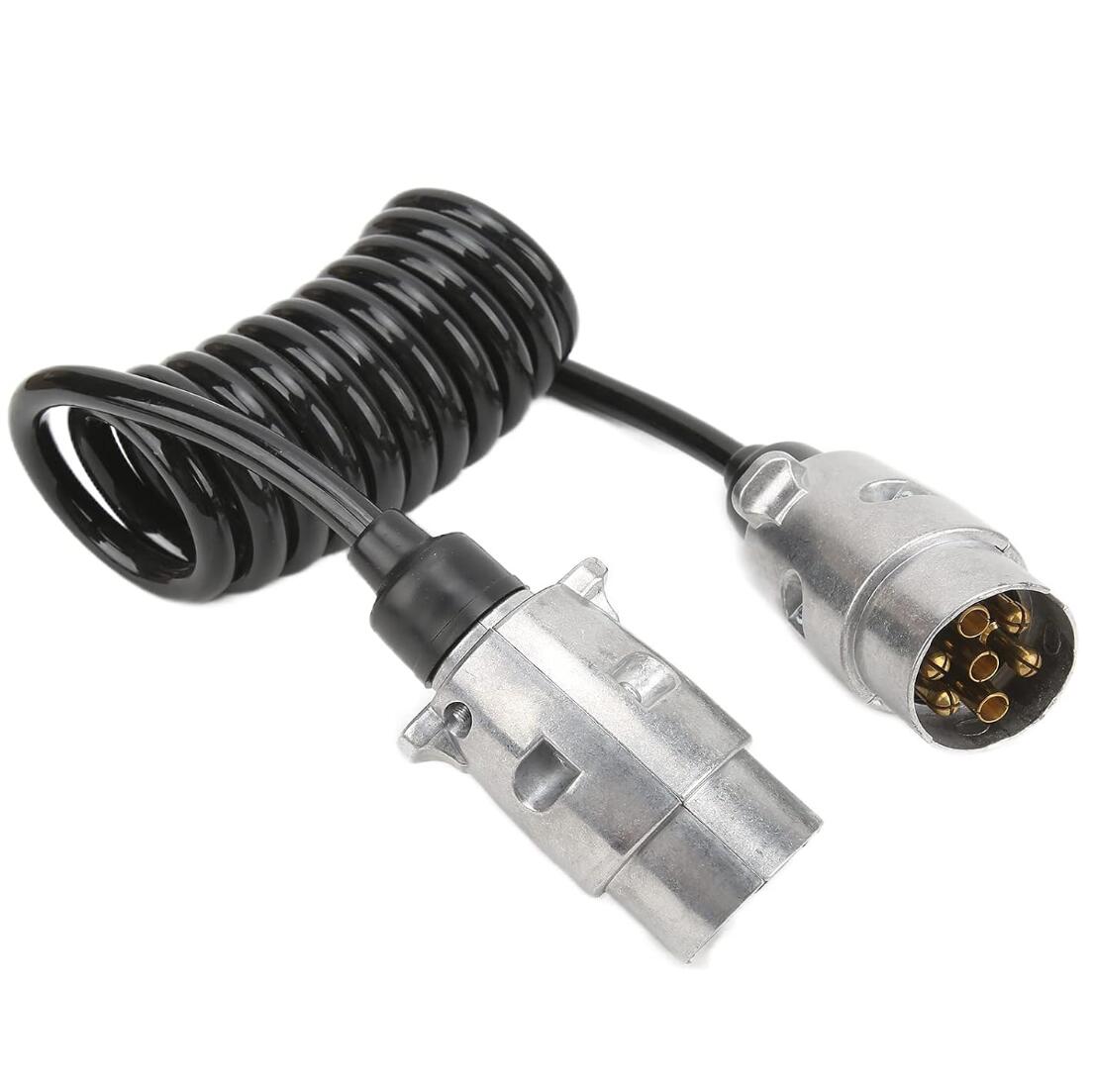

Box contents: 1 x 2.8 m 7-pole trailer cable.

How to connect?
1 x Yellow Wire (Left/H Direction Indicator)
Polished 2 – blue wire (rear fog light)
Polished 3 – white wire (return from the earth)
Polished 4 – Green Wire (Right/H Direction Indicator)
Polished 5 – brown wire (straight/H tail and flat lamp no.)
6-pole red wire (brake lights).
Polished 7 – Black Wire (Left/H Tail & License Plate Number)
