Products Specifications:

Voltage Rating Max: 12V
Road Traffic Approval : CE, RoHS
Contact Material: Pure Copper Brass Screw Pin Terminals,Better Rust Protection and prevent corrosion
Housing Material : Durable Plastic High Strength Nylon,hard to be broken or be damaged in bad road condition
Greater Mechanical Resistance And Watertightness Guarantee An Efficient And Reliable Electrical Connection
Suitable For Cars,Trailers,Caravans,Tow Bar,,Lorry,Tractor,Vans,Motorhome,RV And Other Commercial Vehicles.

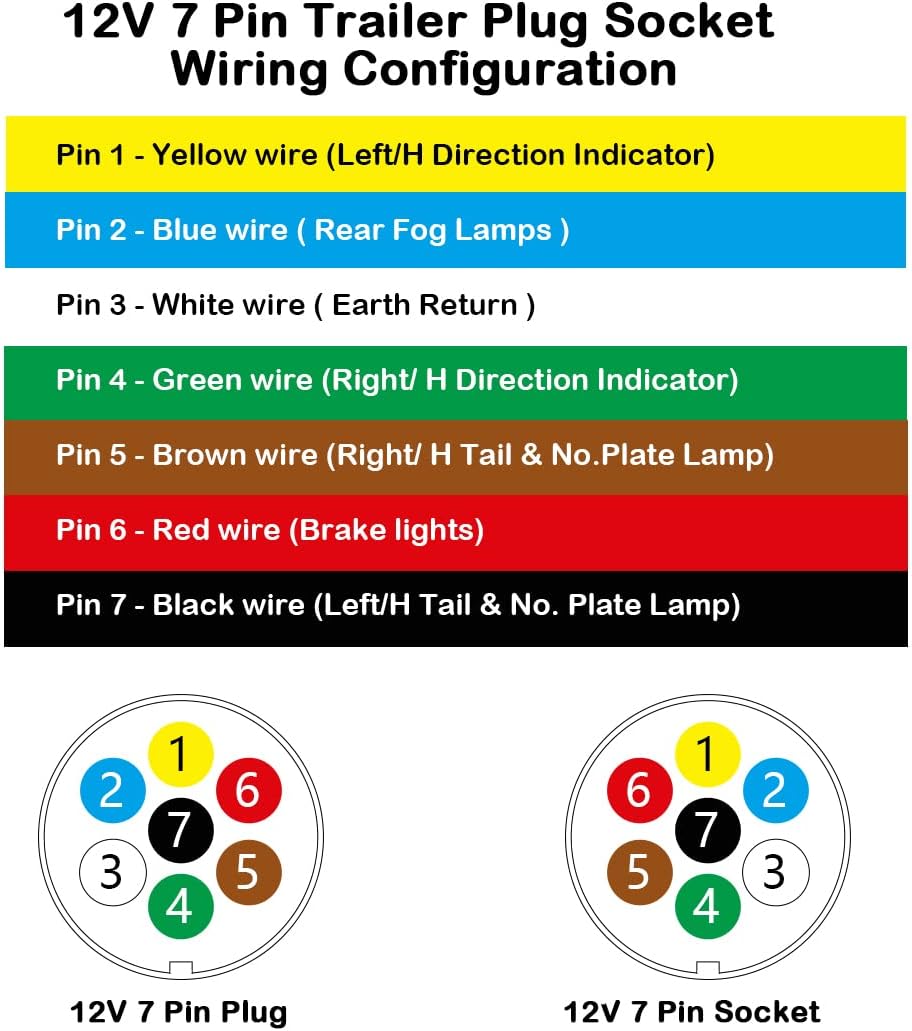

Wiring Diagram(To control vehicles’ lights functions):

Pin 1 – Yellow Wire ( Left Direction Indicator Light )
Pin 2 – Blue Wire (Rear Fog Light )
Pin 3 – White Wire ( Earth Return )
Pin 4 – Green Wire ( Right Direction Indicator Light )
Pin 5 – Brown Wire ( Right Position,Side marker and Number Plate Light )
Pin 6 – Red Wire ( Brake,Stop Light )
Pin 7 – Black Wire ( Left Position,Side marker and Number Plate Light )
