87798 ERA 13 Inch Flush Fit Metal Mudguard Fender with Angle Brackets (2 Pack) – Single Axle Galvanized Steel Wheel Arch Wholesale
Commercial-Grade ERA 13" Flush-Fit Heavy-Duty Steel Trailer Fender Kit with 2 Small Mounting Angle Brackets for Marine Boat Trailers, Caravans & Utility Rigs | Direct Factory OEM & Bulk Supply
| Technical Specification | Parameters & Engineering Details |
| Brand Name | ERA |
| Product Type | Heavy-Duty Metal Mudguard Fender Kit (Flush Fit Profile) |
| Wheel Size Compatibility | 13 Inch Trailer Wheels and Tires |
| Fender Configuration | Single Fender Unit (Individual Wheel Arch) |
| Included Hardware Components | 2 Small Heavy-Duty Mudguard Angle Brackets Included |
| Mounting Orientation | Flush Fit (Mounts Directly Flush to Trailer Body Side) |
| Material Construction | High-Yield Stamped Galvanized Structural Steel (Approx. 16-Gauge / 1.5mm) |
| Edge Profile | Rolled Rounded Safety Outer Edges for High Rigidity |
| Mounting Flange | Flat Inner Rear Flange for Direct Side Wall Bolting / Bracket Attachment |
| Bracket Specifications | Heavy-Duty 6mm (1/4″) Formed Steel Plate, Pre-Drilled Elongated Slots |
| Surface Protection | Hot-Dip Galvanized / Heavy Zinc-Plated Corrosion Resistance |
| Target Applications | Marine Boat Trailers, Caravans, Camper Trailers, Box Utility Haulers |
| B2B Supply Capabilities | Custom Flange Hole Punching, Bare Steel for Welding, Pallet Export Packaging |
Key Features

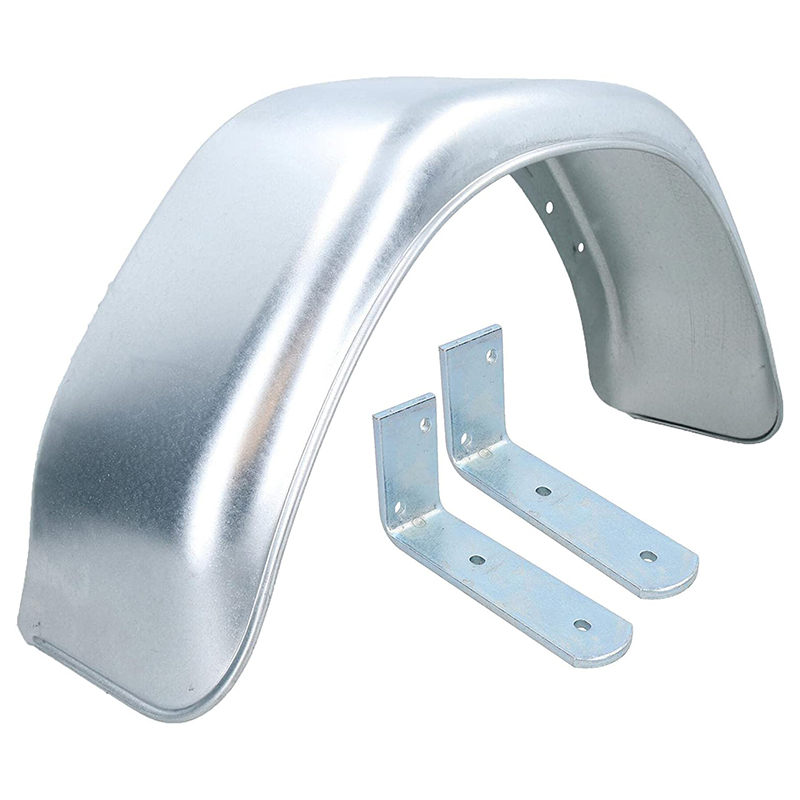

Complete Installation Kit with Brackets: Supplied with a single 13-inch flush-mount metal mudguard and 2 small heavy-duty angle brackets, providing essential hardware for new trailer builds or fleet overhauls.
Streamlined Flush-Fit Geometry: Features a flat vertical inner flange designed to sit flush against the trailer side panel or chassis frame, creating a clean appearance while optimizing tire coverage.

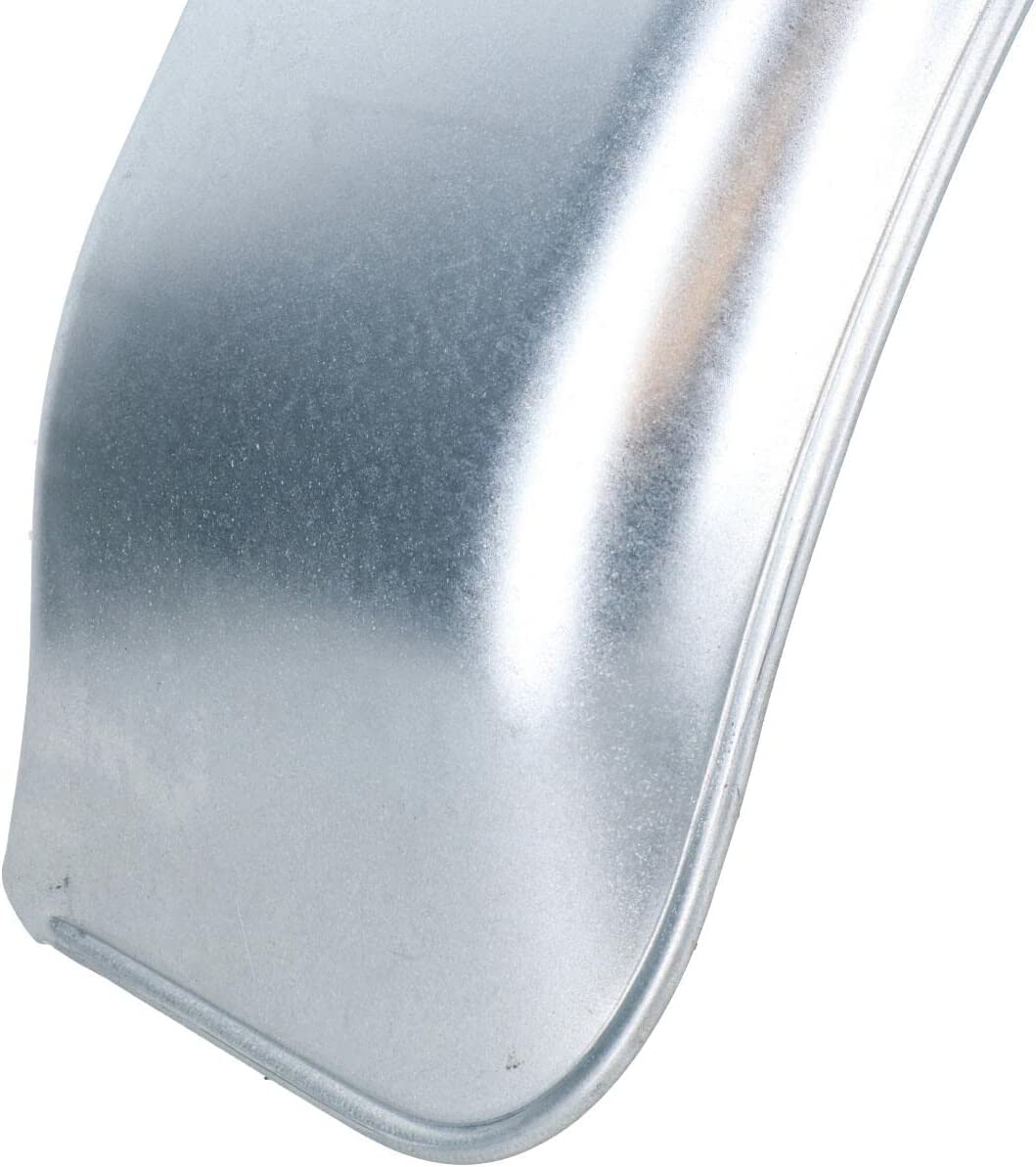

Sturdy Rolled Safety Edges: The outer wheel-facing lip is precision-rolled into a smooth rounded bead, boosting torsional rigidity against vibration while eliminating sharp metal edges.
Heavy-Gauge Galvanized Steel Durability: Formed from high-tensile galvanized steel to absorb road gravel impacts, debris strikes, and tire spray without denting, bending, or rusting.
Slotted Heavy-Duty Angle Brackets: Includes 2 plated steel angle brackets with slotted fastener holes, allowing fine height and reach adjustment to ensure proper fender clearance over 13-inch tires.
Certificates
Q1: What is the operational advantage of a flush-fit trailer fender over an offset style?
A: A flush-fit fender features a flat inner mounting plane designed to mount directly against the trailer side wall. This provides a compact, streamlined profile that keeps overall trailer width narrow for tight parking and garage storage.
Q2: What is the purpose of the 2 included small angle brackets?
A: The two heavy-duty angle brackets reinforce the lower front and rear corners of the fender to the trailer frame. This eliminates high-speed road vibration, prevents metal fatigue cracking, and provides rigid triangulation under heavy payloads.
Q3: Can this metal mudguard be welded or bolted onto a trailer?
A: Yes. The flat rear flange and angle brackets feature pre-drilled holes for straightforward bolt-on attachment, while the heavy-gauge steel construction can also be directly welded onto steel chassis frames before painting.
Q4: Is this galvanized fender suitable for saltwater marine boat trailers?
A: Absolutely. Both the steel mudguard and the 2 mounting angle brackets undergo heavy galvanization and zinc plating, providing corrosion defense against saltwater spray, boat ramp submersion, and winter road chemicals.
Q5: What OEM and wholesale options are provided by ERA for trailer manufacturers?
A: ERA offers full B2B supply flexibility, including pre-punched custom bolt patterns on the rear flange, optional raw weldable steel finishes, custom bracket lengths, and nested pallet packaging for container export.
