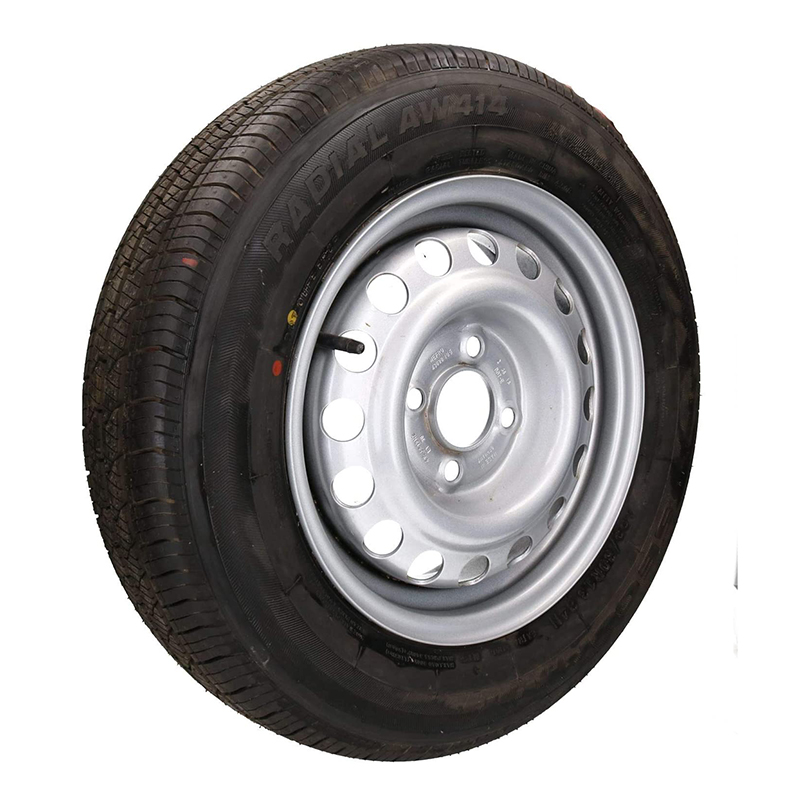

87797 ERA 13 Inch Trailer Wheel and Tyre Assembly (4×100 PCD) – 155/70R13, 155/80R13, 165/80R13 Mounted Steel Wheel Wholesale
Commercial-Grade ERA Complete 13" Pre-Mounted Radial Trailer Tyre and Steel Wheel Assembly with 4 on 100mm PCD for Caravans, Boat Trailers & Utility Rigs | Direct Factory OEM & Bulk Supply
| Technical Specification | Parameters & Engineering Details |
| Brand Name | ERA |
| Product Type | Complete Pre-Mounted Trailer Wheel and Tyre Assembly |
| Wheel Rim Diameter | 13 Inch |
| Bolt Circle Pattern (PCD) | 4 × 100mm (Standard European / Metric 4-Stud Pattern) |
| Available Tyre Sizes | 155/70 R13, 155/80 R13, 165/80 R13 |
| Tyre Construction Type | Heavy-Duty Radial Highway Ply Construction |
| Rim Construction | Heavy-Gauge Stamped Structural Carbon Steel Rim |
| Surface Protection | Anti-Corrosion Silver Galvanized / Commercial White Powder Coat |
| Factory Assembly Status | Factory Pre-Mounted, Balanced, and Fitted with High-Pressure Valve Stem |
| Operating Safety Standards | E-Marked & DOT Highway Approved Compliance |
| Target Applications | Caravans, Marine Boat Trailers, Box Utility Trailers, Camping Trailers |
| B2B Supply Capabilities | Custom Rim Colors (Silver, White, Black), High-Load Ply Ratings (C-Rated), Pallet Export Packaging |
Key Features
Turnkey Ready-to-Install Assembly: Factory mounted, bead-sealed, and balanced onto a durable 13-inch steel rim with a pre-installed valve stem, eliminating costly tire-fitting labor and speeding up trailer production.

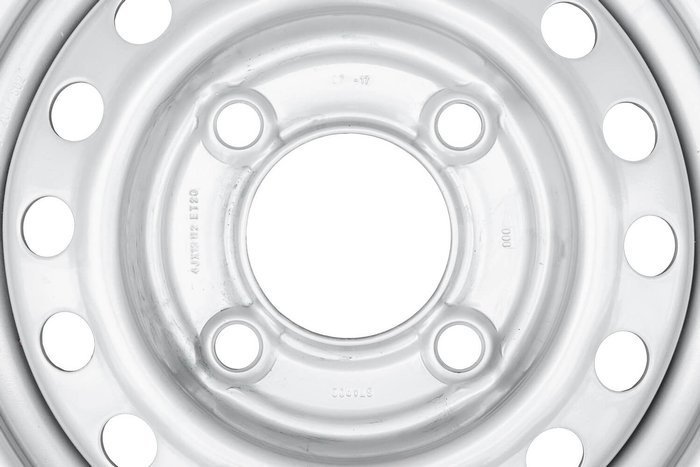

Standard 4 × 100mm PCD Hub Fitment: Engineered with an industry-standard 4-stud on 100mm pitch circle diameter, ensuring a direct bolt-on fit for European-style hubs and light-to-medium utility trailer axles.
Three Versatile Radial Tyre Options: Available in 155/70 R13, 155/80 R13, and 165/80 R13 specifications to provide optimal fender clearance, load ratings, and ground clearance tailored to specific chassis heights.
Robust Highway-Rated Radial Tread: Delivers low rolling resistance, dependable wet-weather water displacement, and high tracking stability to prevent trailer sway at highway speeds.
All-Weather Marine & Road Protection: The heavy-duty steel rim is treated with an anti-corrosion coating to resist road salt brine, dirt, and boat ramp water splash without premature peeling or rusting.
Certificates
Q1: What trailer applications are best suited for this ERA 13-inch 4×100 wheel and tyre assembly?
A: This assembly is ideal for compact to mid-sized trailers, including single-axle box utility trailers, European-style camping trailers, lightweight caravans, small fishing boat haulers, and motorcycle trailers using a 4×100 hub.
Q2: How do the 155/70 R13, 155/80 R13, and 165/80 R13 tyre options differ?
A: The 155/70 R13 provides a low-profile stance for low-deck trailers and tight wheel arch clearances. The 155/80 R13 offers a balanced standard profile with enhanced bump cushioning, while the 165/80 R13 provides a wider contact patch and higher load capacity for heavier cargo requirements.
Q3: Will the 4×100 PCD fit standard American 4 on 4″ trailer hubs?
A: No. A 4x100mm PCD measures 100mm diagonally across the bolt centers (approx. 3.94″), whereas a 4 on 4″ PCD measures 101.6mm. This wheel is precision-engineered specifically for 4x100mm metric hubs commonly used on European and modern utility trailer axles.
Q4: Can this wheel and tyre assembly be used on boat trailers for boat ramp launches?
A: Yes. The steel rim features a multi-layer anti-corrosion barrier, and the high-grade rubber compound resists weather exposure and water immersion. For saltwater boat launches, freshwater rinsing after retrieval is recommended to maximize wheel longevity.
Q5: What OEM and wholesale options are provided by ERA for fleet builders and distributors?
A: ERA offers comprehensive B2B supply services, including choice of rim finish (galvanized silver, gloss white, or matte black), specific load range ply ratings, custom pallet stack counts, and full container-load export delivery.
