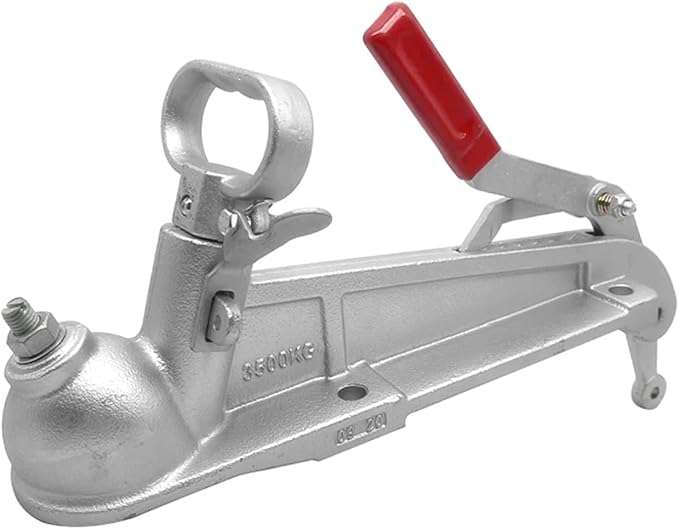

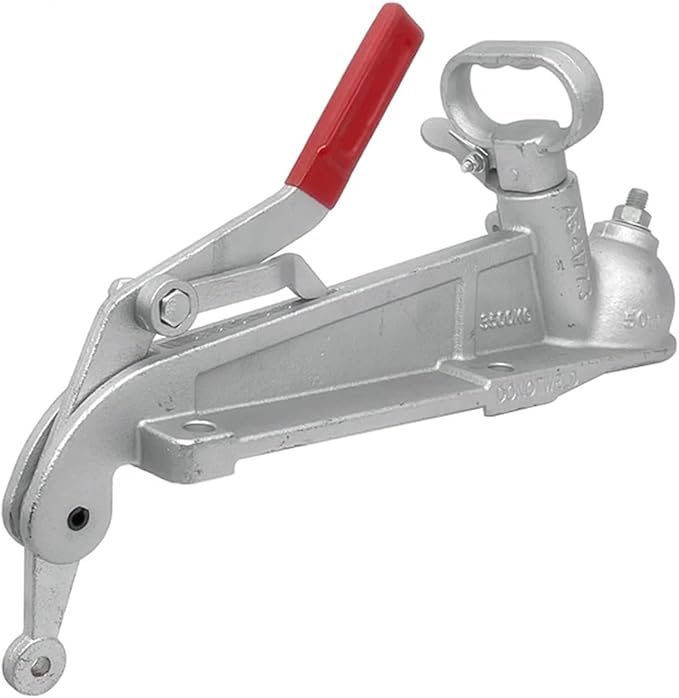

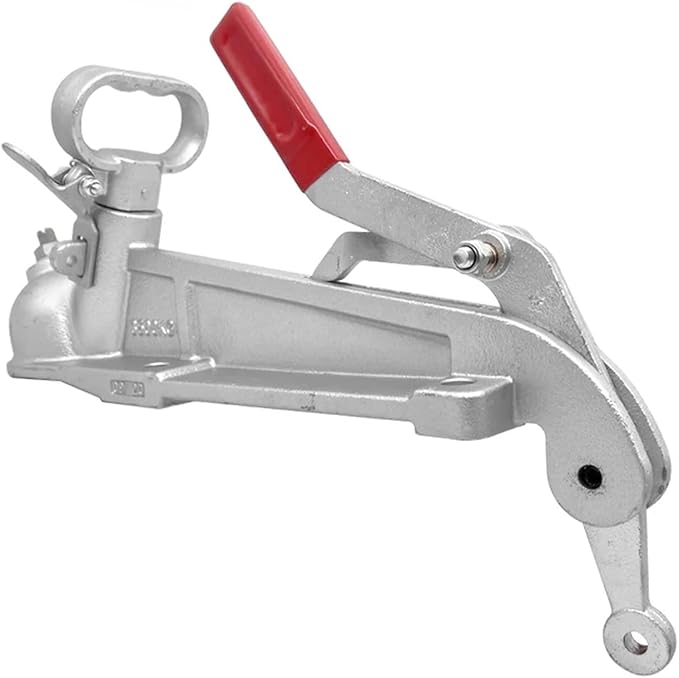

87739 3500kg 50mm Forged Steel Trailer Coupling with Handbrake (55x185mm) – Heavy-Duty Mechanical Brake Hitch Wholesale
Heavy-Duty 3.5T Forged Steel Overrun Coupling with Integrated Handbrake Lever for Caravans, Boat Trailers & Utility Rigs | Direct Factory OEM & Bulk Supply
| Technical Specification | Parameters & Engineering Details |
| Product Model / Item Code | 87739 |
| Product Type | Heavy-Duty Trailer Coupling with Integrated Brake Handle |
| Max Load Capacity (ATM) | 3500kg (3.5 Ton) |
| Compatible Hitch Ball Size | 50mm Standard Tow Ball |
| Mounting Hole Pattern | 4-Bolt Pattern: 55mm × 185mm Hole Spacing (Center to Center) |
| Material Construction | Heavy-Duty Drop Forged Steel |
| Surface Finish / Protection | Corrosion-Resistant Galvanized / Dacromet Protective Coating |
| Braking Compatibility | Integrated Manual Parking Handbrake Lever for Mechanical Overrun Systems |
| Locking Mechanism | Quick-Release Safety Trigger Latch with Anti-Decoupling Pin Hole |
| Primary Applications | Caravans, Boat Trailers, Heavy Equipment Carriers, Commercial Utility Trailers |
| B2B Supply & OEM | Custom Surface Finish, Laser Engraved Logos, Stamped Compliance Marks, Bulk Pallet Packaging |
Key Features
High-Strength Drop Forged Steel Construction: Engineered from high-density forged steel rather than standard cast or pressed metal, delivering superior tensile strength, fatigue resistance, and impact toughness under high G-force road shock.
Heavy-Duty 3500kg (3.5 Ton) Towing Capacity: Fully rated for 3.5T towing loads, providing a secure, vibration-dampening connection for tandem-axle caravans, commercial utility trailers, and heavy plant haulers.
Integrated Mechanical Parking Handbrake: Features a heavy-duty, spring-loaded manual brake lever that connects seamlessly to cable override braking systems, ensuring secure stationary parking and emergency breakaway safety.

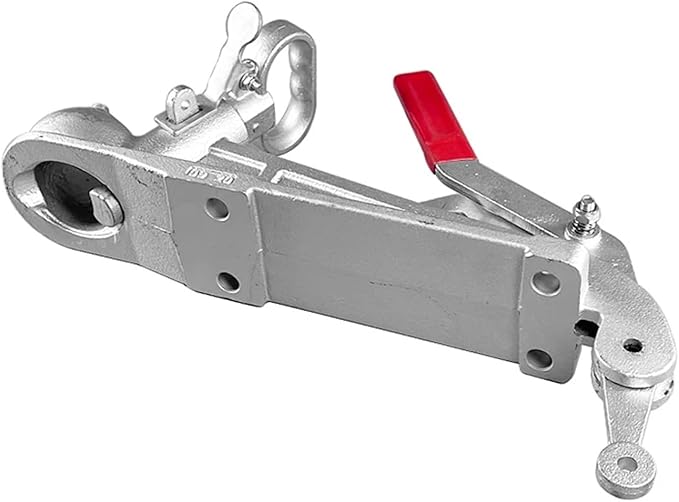

Standard 55 × 185mm 4-Bolt Chassis Mounting: Precision-machined 55 × 185mm mounting hole centers match international heavy-duty trailer drawbar standards, allowing for quick bolt-on assembly and simplified fleet retrofitting.
Standard 50mm Tow Ball Quick Coupling: Precision-machined internal locking jaw provides a snug, rattle-free fit on standard 50mm hitch balls, reducing coupling wear and sway during high-speed highway transport.
Certificates
Q1: What trailer applications are best suited for this 3500kg 50mm coupling?
A: This 3500kg coupling is engineered specifically for heavy-duty trailers requiring mechanical override braking, including tandem-axle caravans, large boat trailers, horse floats, car haulers, and commercial flatbed utility trailers towing up to 3.5 tons.
Q2: How does drop forged steel compare to pressed sheet metal or cast iron couplings?
A: Drop forged steel aligns the metal grain structure with the shape of the component, resulting in significantly higher structural density and fracture resistance. Unlike pressed steel, it does not flex or deform under 3.5T tongue weights, and unlike standard cast iron, it resists brittle cracking under severe shock loads.
Q3: Is the 55 x 185mm hole spacing an industry-standard mounting pattern?
A: Yes. The 55mm × 185mm 4-bolt spacing is the standard industrial pattern for 3.5-ton mechanical override couplings across Australian (ADR), European, and international heavy trailer chassis drawbars, allowing direct bolt-on installation without extra drilling.
Q4: How does the integrated brake lever connect to the trailer brakes?
A: The integrated handbrake handle acts as a manual parking brake lever. It features standard mounting holes and linkage points for mechanical brake cables or override brake assemblies, allowing operators to engage the trailer’s drum or disc brakes while parked.
Q5: What OEM customization services are available for B2B distributors?
A: We offer complete B2B manufacturing support, including custom corrosion-resistant surface coatings (hot-dip galvanized, electro-zinc, or black Dacromet), customer part number and logo stamping, custom-rated safety chain lugs, and specialized pallet or retail carton packaging.
