87721-60 800kg R55 Trailer Coupling for 60mm Round Drawbars
Pressed Steel Coupling Head for 50mm Tow Balls, with Wear and Attachment Indicators
| Item | Specification |
|---|---|
| Product Type | Trailer ball coupling head |
| Trailer Configuration | Unbraked |
| Rated Coupling Capacity | 800kg |
| Compatible Tow Ball Diameter | 50mm |
| Drawbar Compatibility | 60mm round tube |
| Required Mounting Bolts | 2 × M12 |
| Minimum Bolt Property Class | 8.8 |
| Top Mounting Hole Centres | 90mm |
| Side Mounting Hole Centres | 90mm |

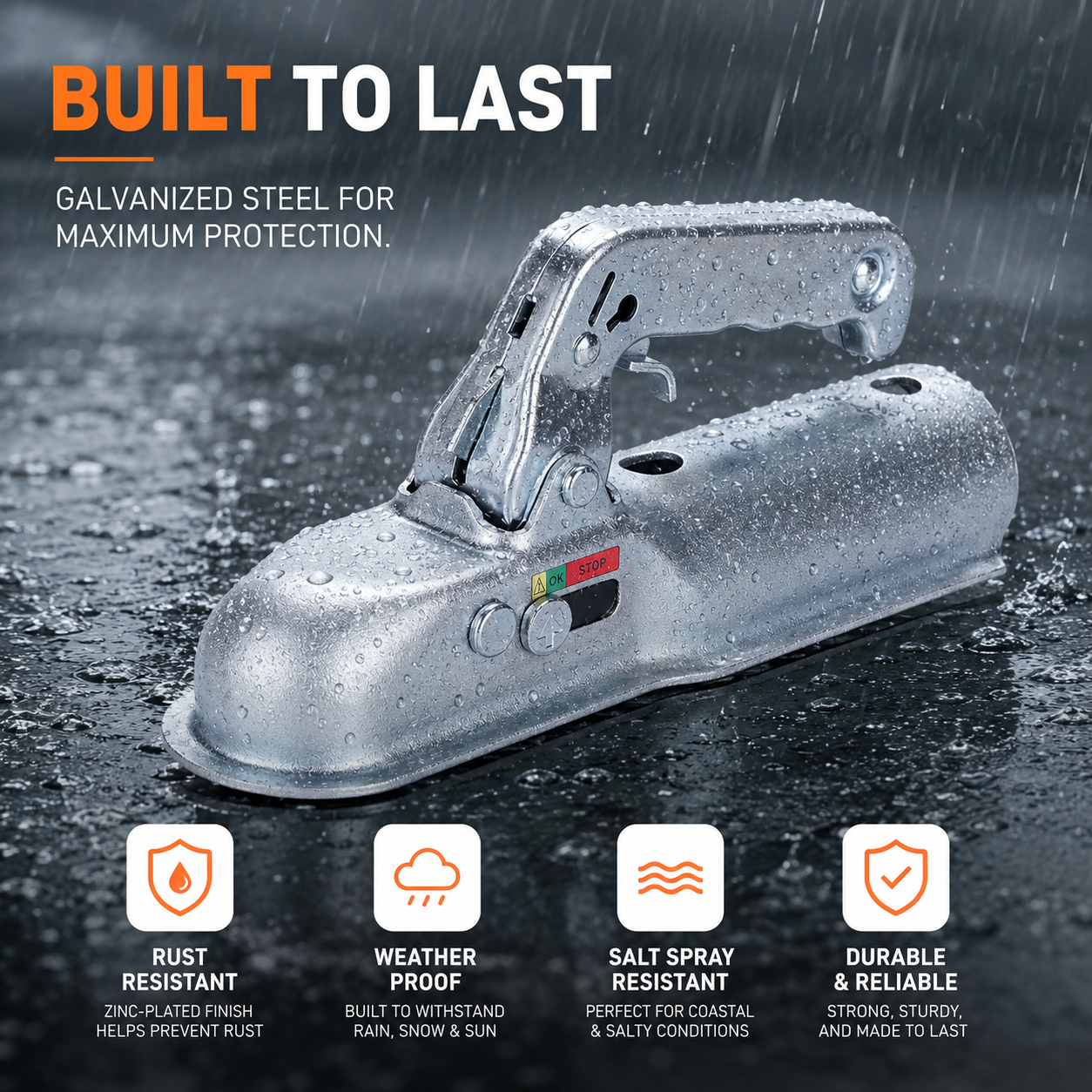

| Material | Pressed steel |
| Surface Finish | Zinc plated |
| Approval | UN R55 approved |
| D-Value | 7.7kN |
| Maximum Static Vertical Load — S | 800kg |
| Indicators | Wear indicator and correct attachment indicator |
| Coupling Lock | Not included |
| Compatible Optional Lock | Ref. 87753 |
| Compatible Soft Dock | Ref. 87717 |
Applications
Certificates
Q1. What drawbar and tow ball sizes does this coupling fit?
This version is designed for a 60mm round tube drawbar and a 50mm tow ball. Check both interfaces before selecting the coupling.
Q2. What mounting bolts and hole spacing are specified?
The specified installation uses two M12 bolts with a minimum property class of 8.8. Top and side mounting hole centres are specified as 90mm. Use the model-specific instructions to confirm the permitted fastening arrangement and tightening torque.
Q3. What do D7.7 and S75 mean?
D7.7 identifies a D-value of 7.7kN, a characteristic performance value for horizontal coupling forces. S75 identifies a maximum static vertical load of 75kg at the coupling. Other components or vehicle limits may impose lower limits.
Q4. Does the 800kg rating determine the permitted mass of the complete trailer?
The 800kg figure is the coupling’s rated capacity. The complete trailer’s permitted mass also depends on its approval, braking configuration, towing vehicle limits and applicable regulations.

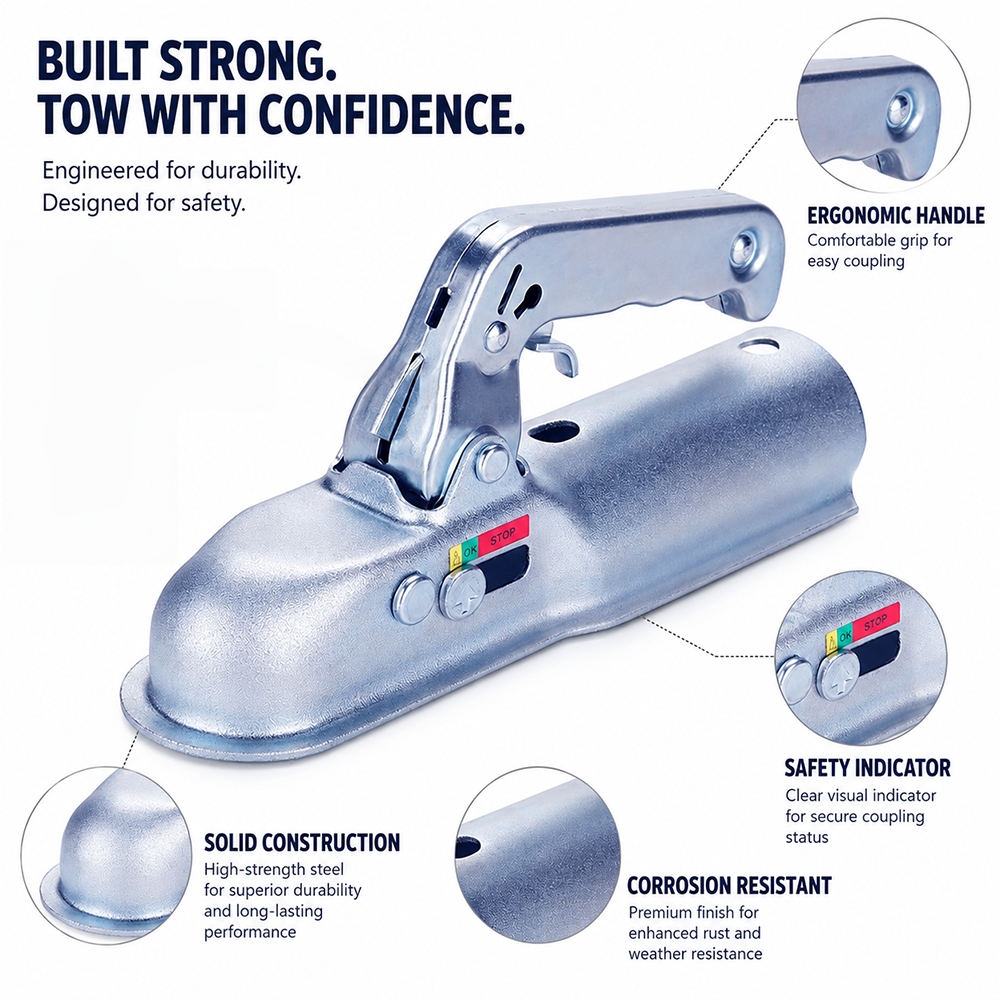

Q5. What are the wear and attachment indicators used for?
The wear indicator supports assessment of the coupling’s service condition. The attachment indicator supports checking engagement with the tow ball. Read the markings according to the supplied operating instructions.
Q6. Are a lock and soft dock included?
The coupling is supplied without a lock. Compatible lock Ref. 87753 and soft dock Ref. 87717 can be specified separately.
Q7. What should European OEM buyers confirm before ordering?
Confirm the drawbar profile and diameter, mounting drawing, required load ratings and complete R55 approval details. Provide the destination market, quantity and any requirements for accessories, marking and packaging.
