Technical Specifications

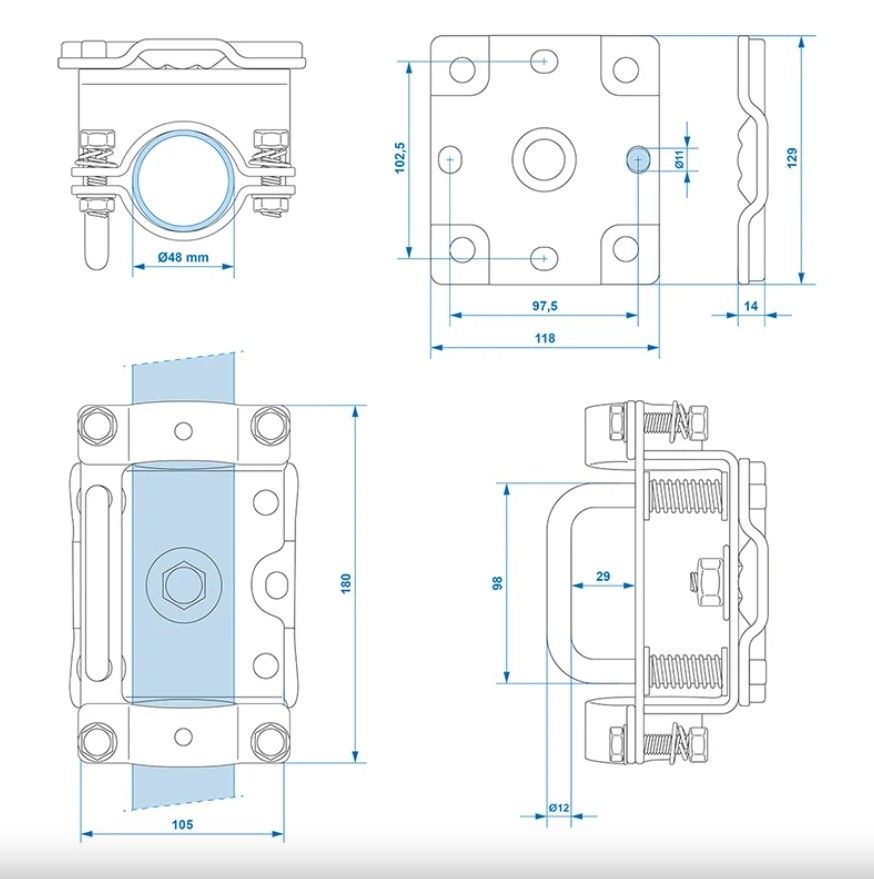

Compatible Tube Diameter：48mm (Φ48)
Product Type：Swivel / Fold-up Bracket
Material：Heavy-duty steel
Surface Finish：Silver Zinc Plated (Rust and corrosion-resistant)

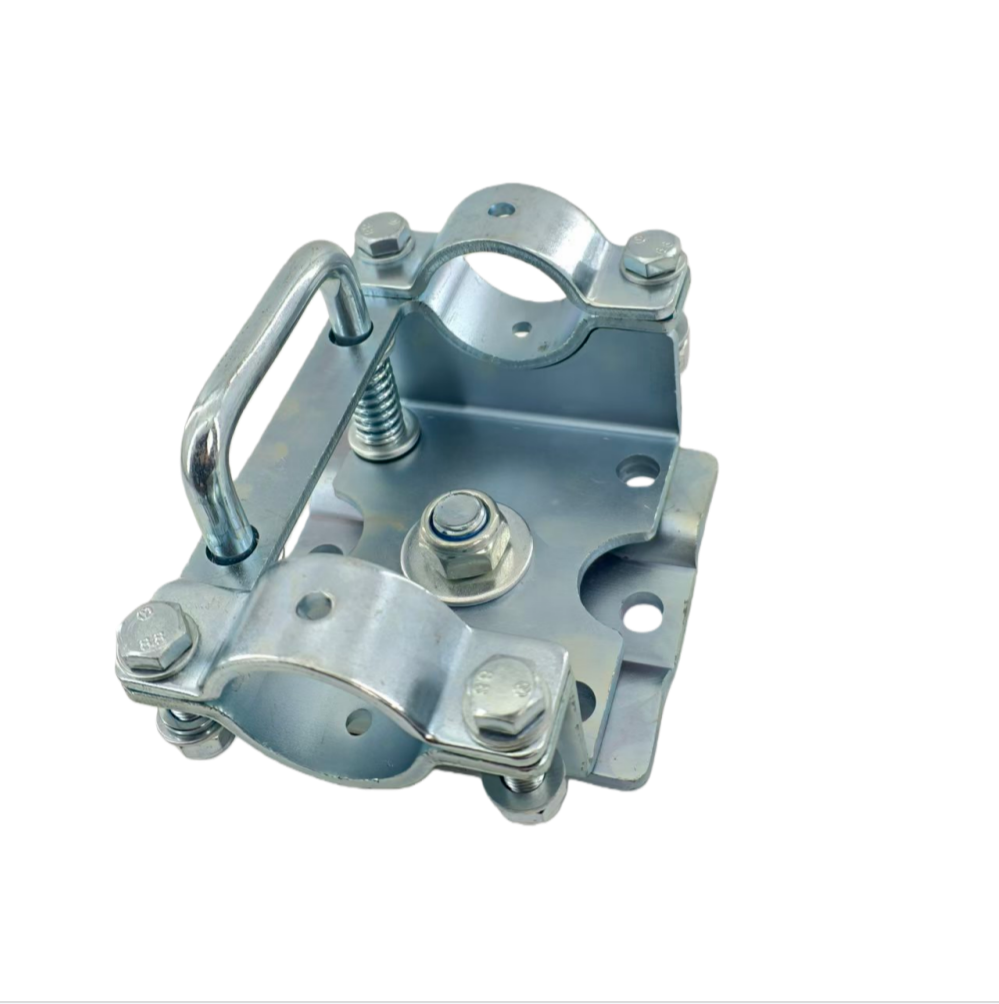

Swivel Mechanism：Spring-loaded pull-release handle (U-shaped) with dual locking pins
Pivot Point：Heavy-duty central hex bolt with lock nut
Tube Clamping Method：Fixed split clamp secured by two high-tensile hex bolts and nuts
Mounting Plate：Flat backing plate with pre-drilled holes (designed for U-bolt mounting to the trailer chassis or welding)

Key Features

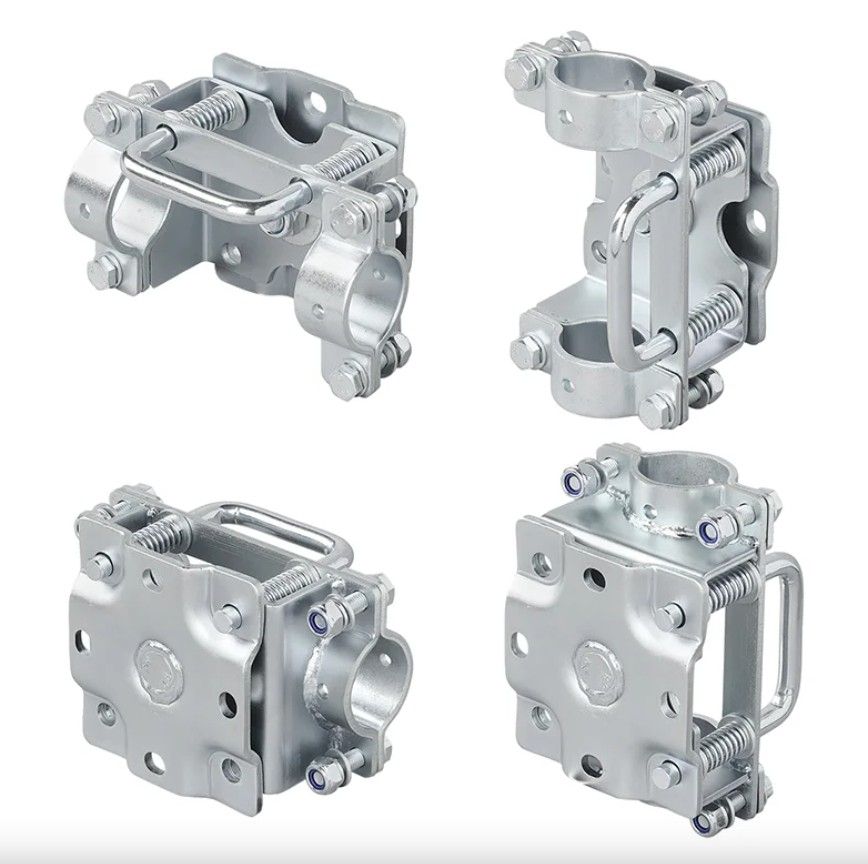

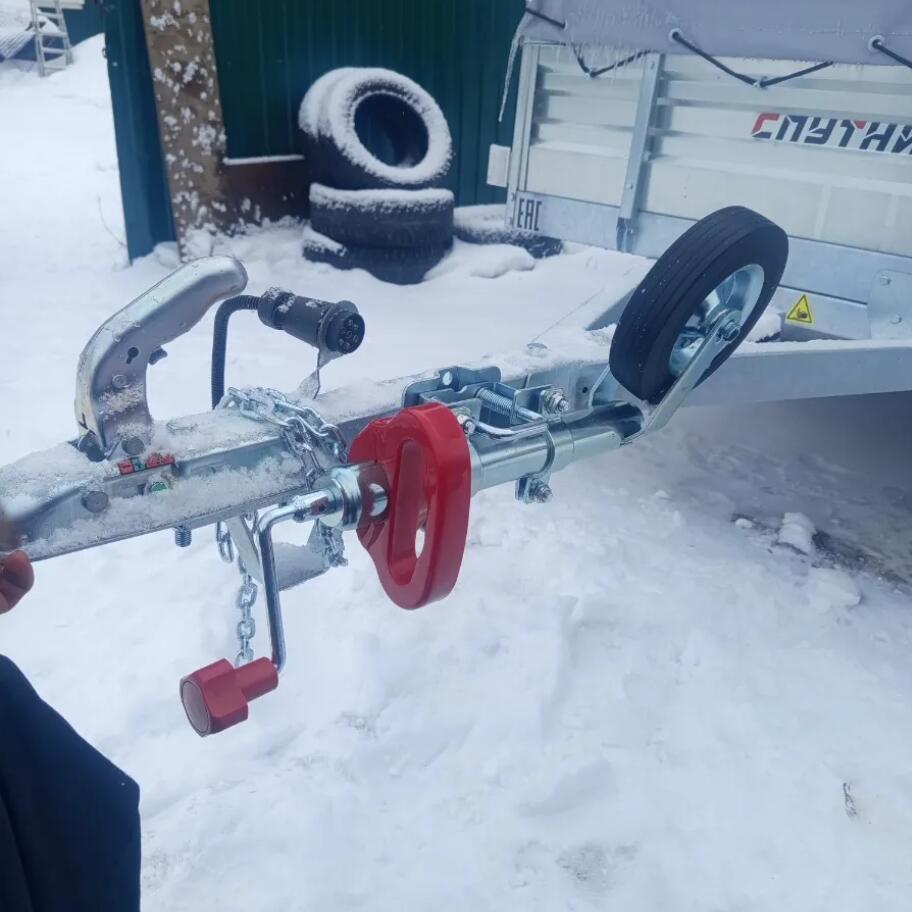

Spring-Loaded Swivel Action: Features a robust U-shaped pull handle connected to dual heavy-duty coil springs. Pulling the handle releases the locking pins, allowing the bracket to easily pivot 90 degrees between the vertical (in-use) and horizontal (stowed) positions.
Secure Locking: The dual-pin design ensures the bracket locks firmly and safely into place, preventing accidental release during transit or maneuvering.
Rigid Tube Clamping: Unlike quick-release clamps, this bracket uses two heavy-duty bolts to permanently secure the 48mm tube, ensuring zero slipping under heavy tongue weights.
Heavy-Duty Pivot Bolt: Built with a large central pivot bolt reinforced with a lock nut to handle high lateral stress and repetitive pivoting.

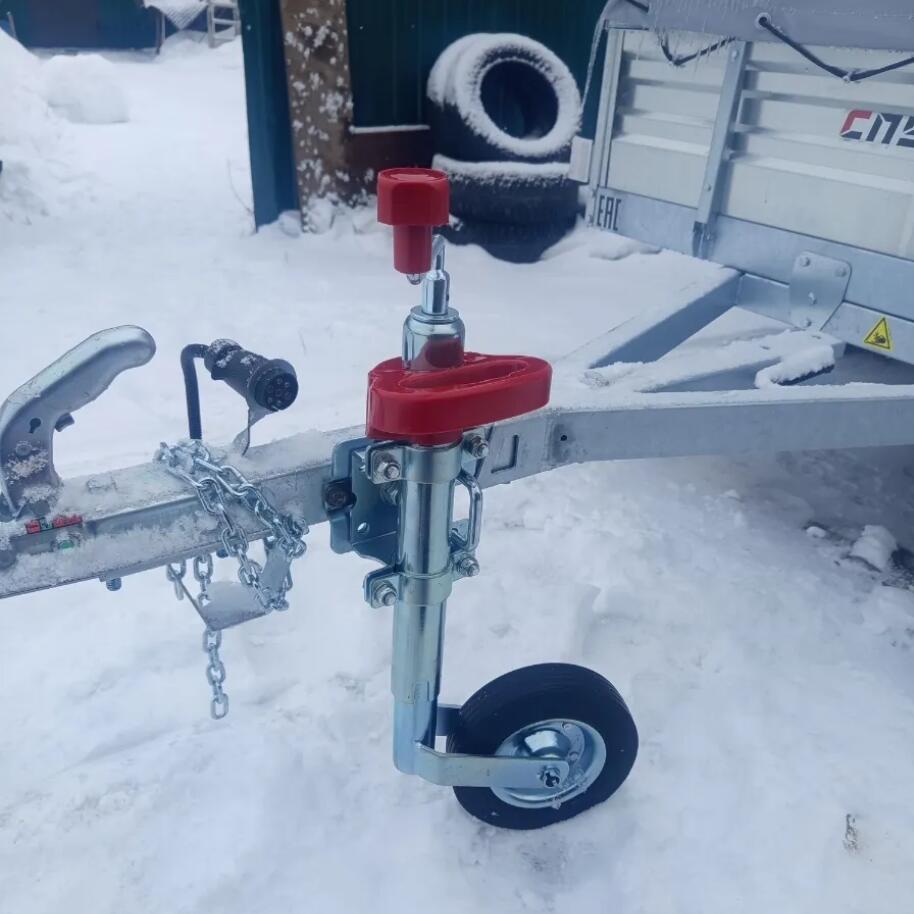

Versatile Mounting: The flat backing plate is designed with multiple bolt holes, making it easy to mount to various trailer drawbar sizes using standard U-bolts, or it can be directly welded to the chassis.
