Technical Specifications

Key Features

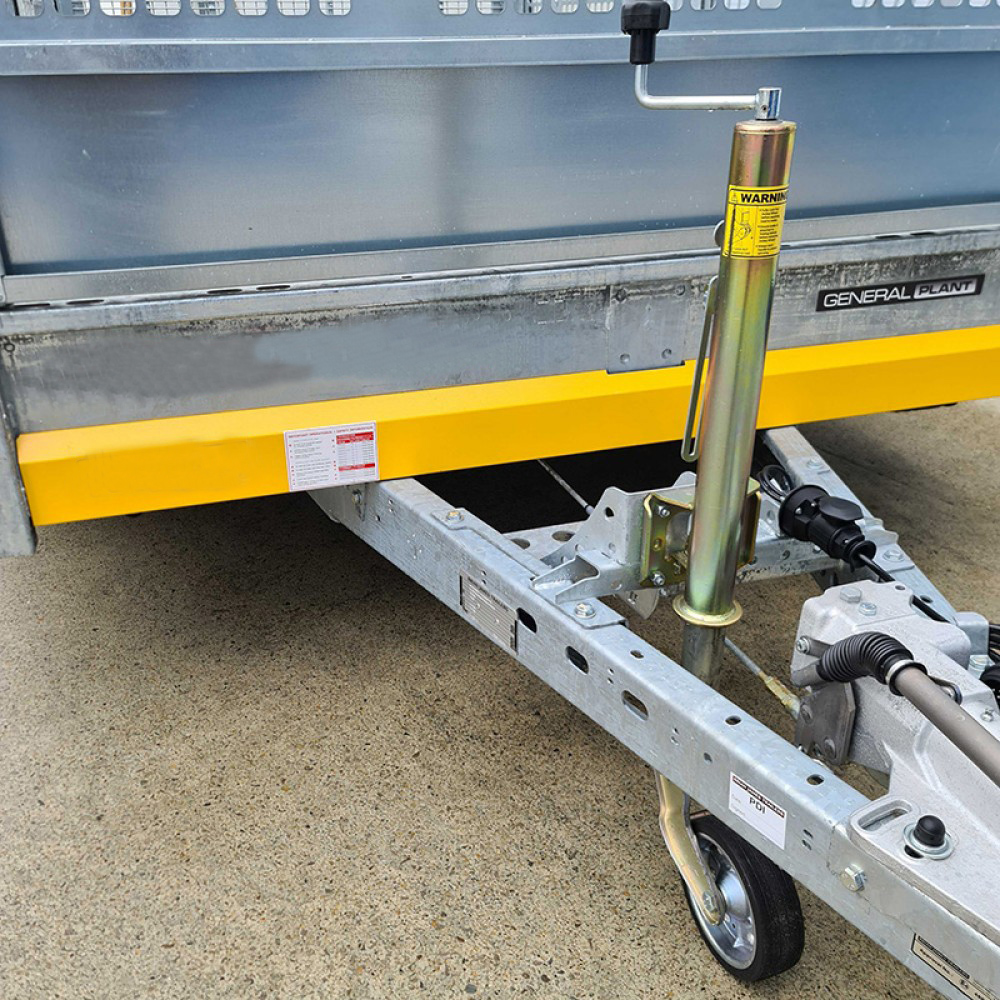

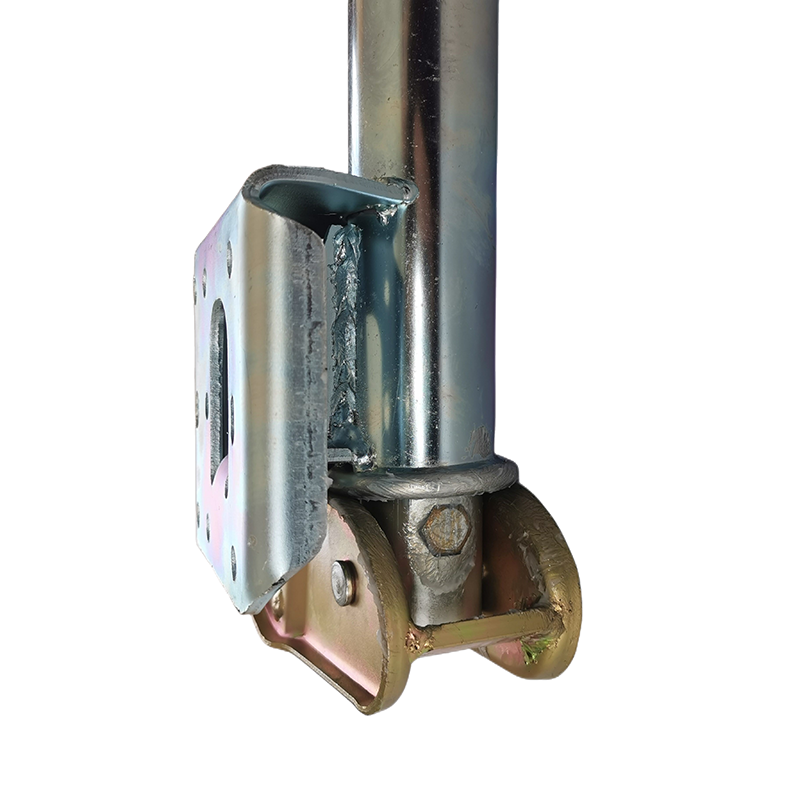

• Heavy Duty 60mm Auto Fold Jockey Wheel designed for professional trailer applications
• Maximum load capacity: 500kg, suitable for high nose weight and heavy-duty trailers
• 60mm outer tube diameter for superior strength, stability, and bending resistance

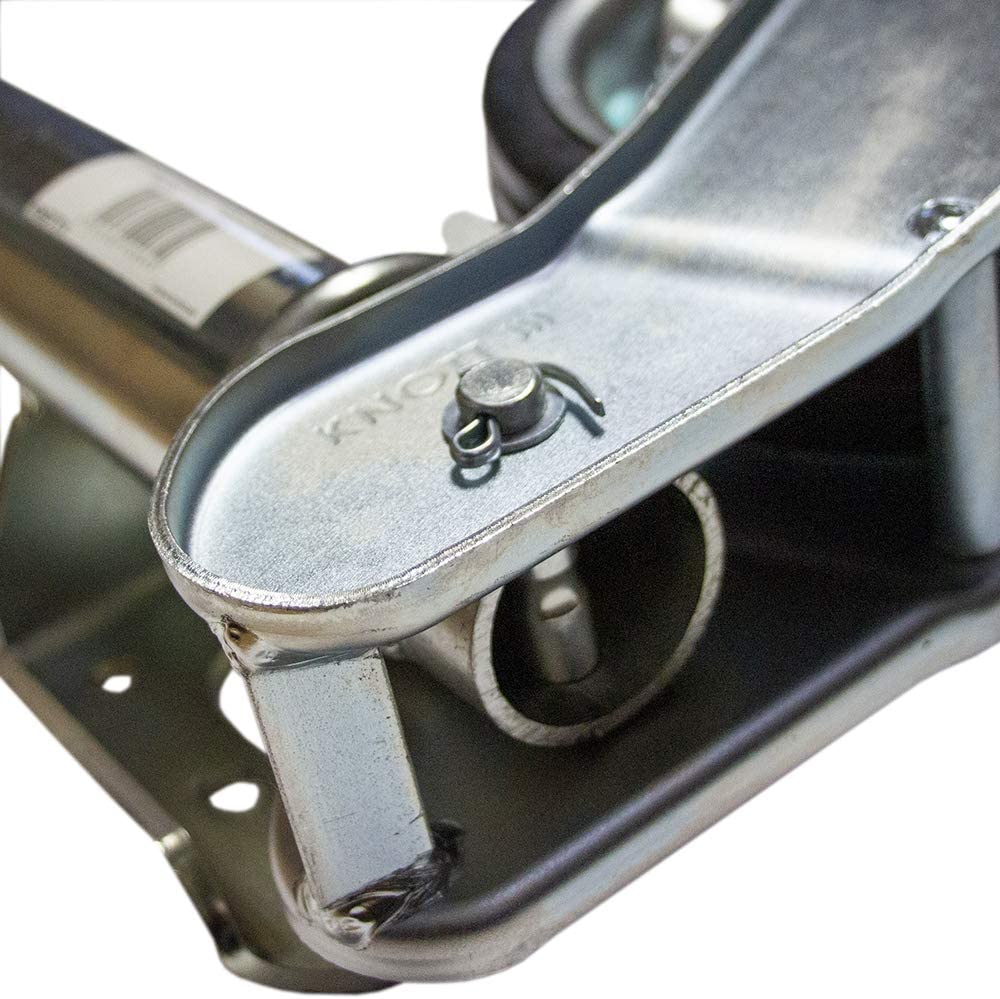

• Automatic fold-up and locking system – wheel raises automatically during retraction and locks securely in the raised position
• Automatic release when wound down with the handle, no manual lifting required
• Lifting height: 460mm, ideal for uneven ground and high trailer drawbars
• Large wheel size: 230 × 80mm for improved stability and smooth rolling
• Zinc plated surface finish for excellent corrosion resistance and outdoor use
• Ball-race handle bearing ensures smooth, easy, and efficient handle rotation under load
• Grease nipple lubrication inlet for simple maintenance and extended service life

Application:

• Commercial and industrial trailers
• Plant and machinery trailers
• Agricultural and livestock trailers
• Car transporters
• Twin axle and high nose weight trailers
