87214 60mm Auto Fold Jockey Wheel with bracket

87214 60mm Auto Fold Jockey Wheel with bracket

60mm 300kg Auto Fold Jockey Wheel with bracket – Heavy Duty Trailer Support System

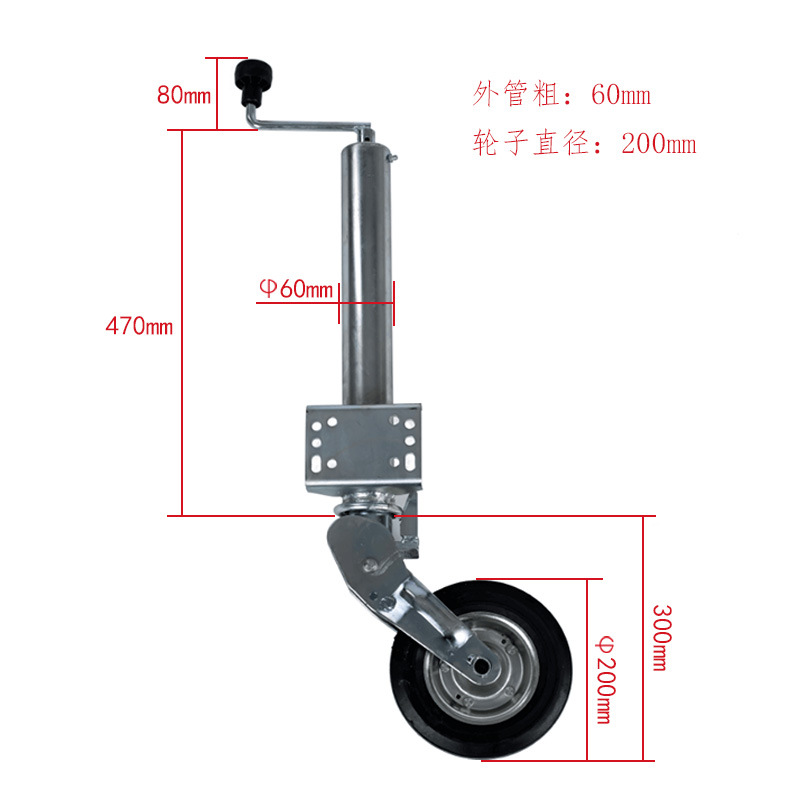

Technical Specifications
- Product Type: Auto Fold Jockey Wheel
- Tube Diameter: 60mm
- Load Capacity: 300kg (static with clamp)
- Height Extension Range: 490mm
- Handle Extension: 130mm
- Wheel Size: 200 × 40mm solid rubber tyre + steel rim
- Mounting Plate: 100 × 130mm integrated plate
- Surface Finish: Zinc Plated
- Bearing Type: Ball-race handle bearing
- Lubrication: Grease nipple system
- Packaging: Box qty 2 / Stillage qty 100

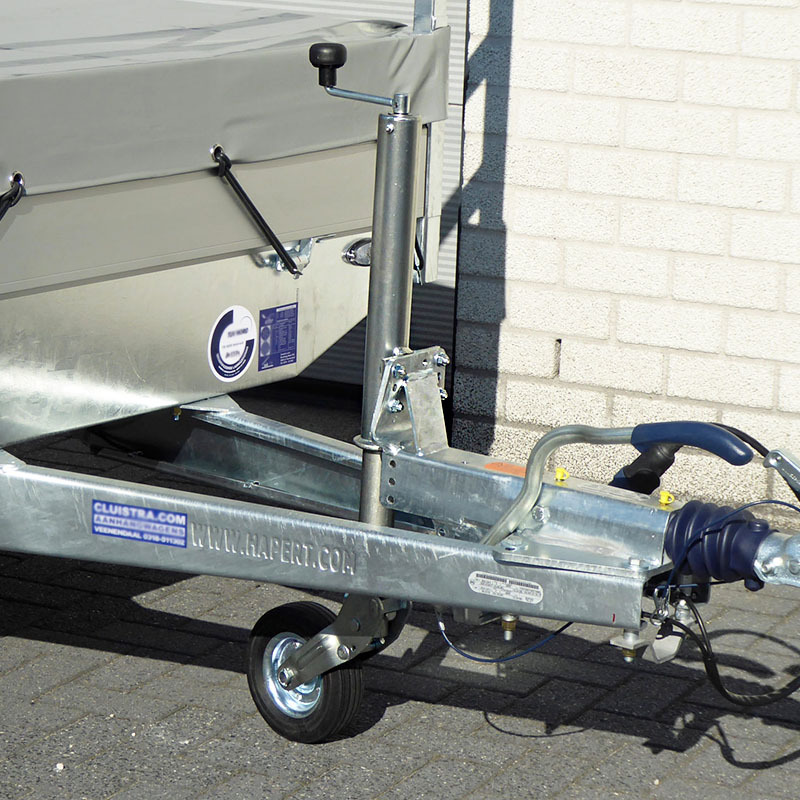

- Application: Heavy-duty trailer support and positioning system
Key Features
- 60mm Auto Fold Jockey Wheel for heavy duty trailer applications
- 300kg maximum static load capacity (with clamp)
- Automatic fold-up and locking system – wheel raises and locks automatically during retraction
- Self-release function when winding down with the handle
- Heavy duty 60mm outer tube for increased strength and stability
- Large height extension range: 490mm for uneven ground conditions

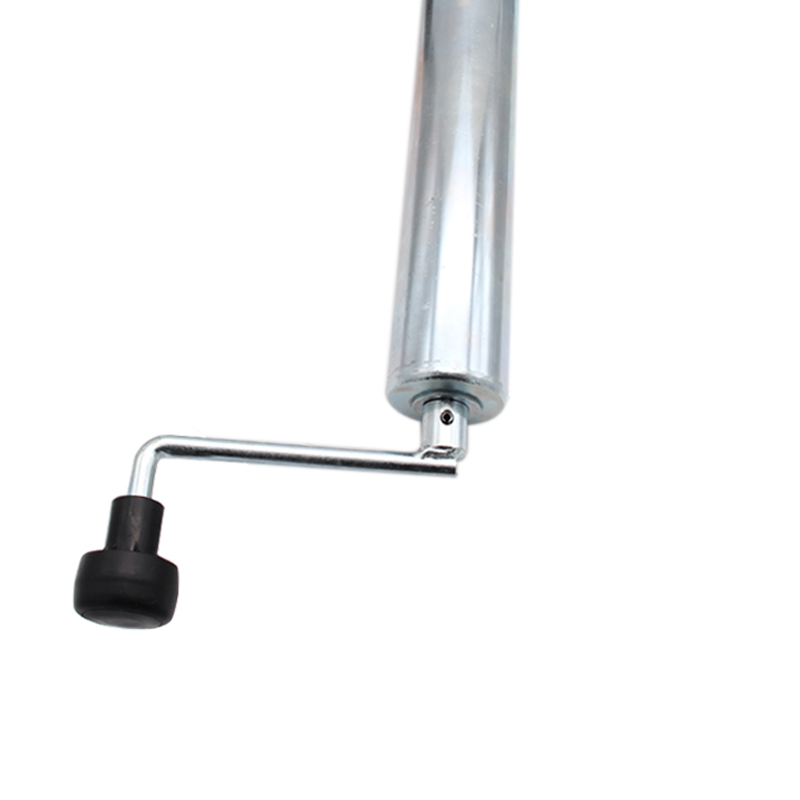

- 130mm handle extension for easier and more comfortable operation
- Ball-race handle bearing ensures smooth and effortless rotation
- Grease nipple lubrication inlet for easy maintenance and extended service life

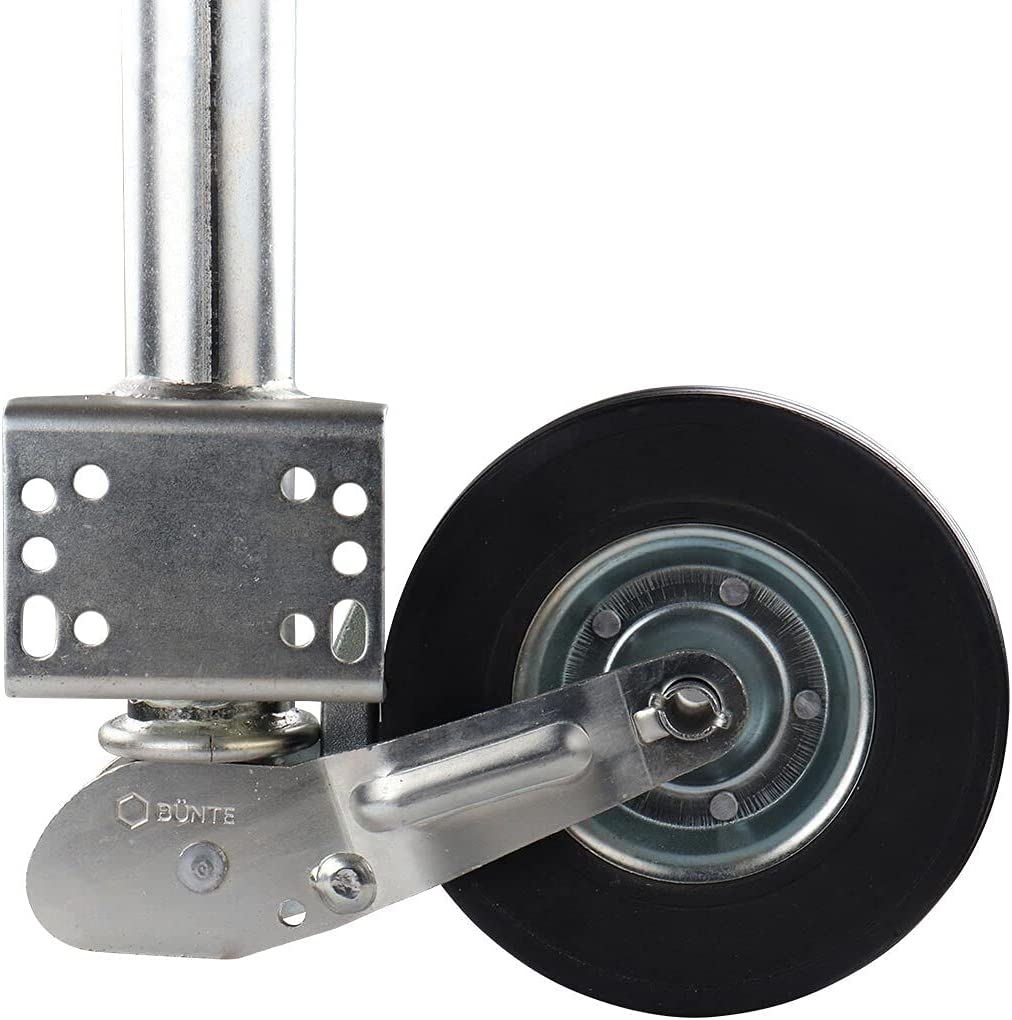

- 200 × 60mm solid rubber tyre with steel rim – puncture-free and durable
- Integrated mounting plate (100 × 130mm) for fast and secure installation
- Zinc plated finish for corrosion resistance and outdoor use
- Ideal for replacement use, wholesale supply, and OEM trailer manufacturing
Widely use for:
- Car transporter trailers
- Horse boxes
- Livestock trailers
- Plant and machinery trailers
- Twin axle trailers
- Commercial and heavy duty trailers
