Prewired LED Trailer Fender Light Assembly, Pair

87144 12V IP68 Prewired LED Trailer Fender Lights – Amber/Red Pair

DOT/SAE-Compliant Left and Right Fender Light Assemblies with 3/4-Inch LEDs, Amber Front Lighting and Red Rear Lighting

Technical Specifications

Item	Specification
Product type	Prewired LED trailer fender light assembly set
Voltage	12V DC
Intended function	Fender-mounted clearance lighting
Forward-facing light	Amber
Rearward-facing light	Red
Set configuration	One left assembly and one right assembly
Round lamp diameter	3/4 inch / approximately 19mm
LED configuration	Single-diode round lamps
Housing material	Black plastic
Ingress protection	IP68
Compliance	DOT/SAE compliant
Assembly condition	Fully assembled and prewired
Mounting	Three screw mounting holes per assembly

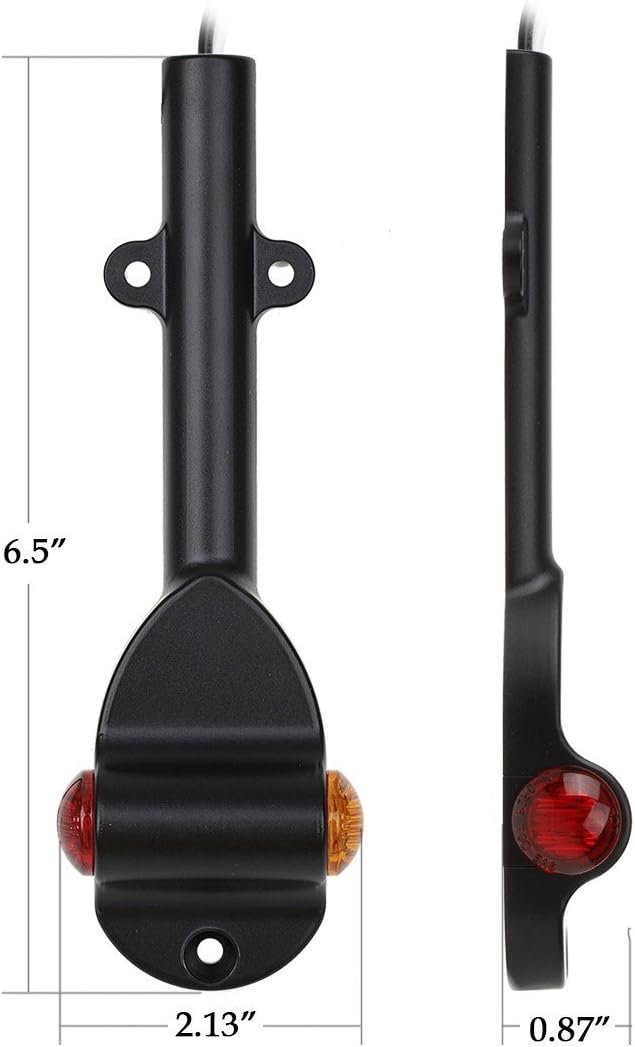

Dimensions shown in product image	Approximately 6.5 × 2.13 × 0.87 inches
Approximate metric dimensions	165 × 54 × 22mm
Mounting fasteners	Not included

Key Features

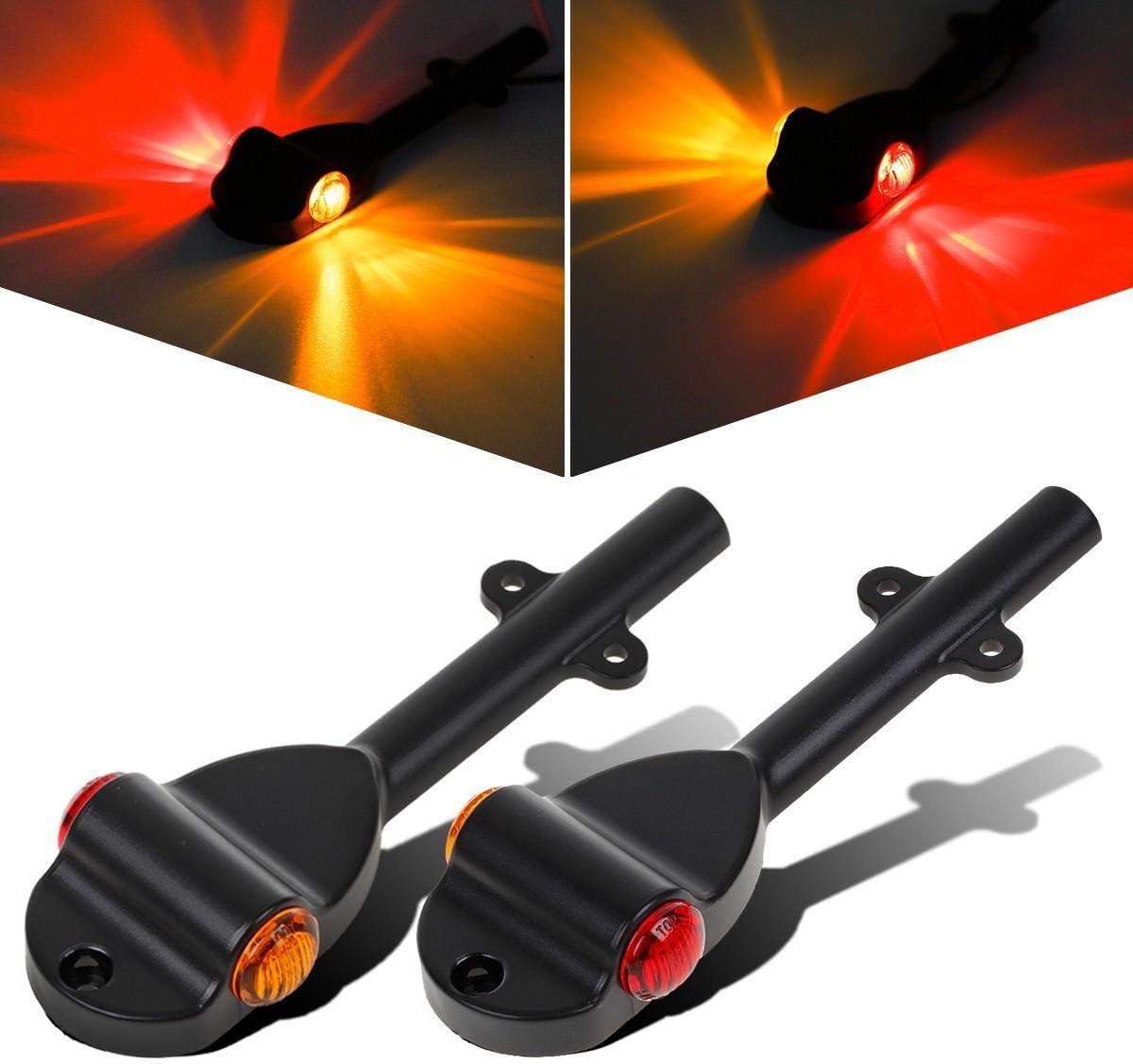

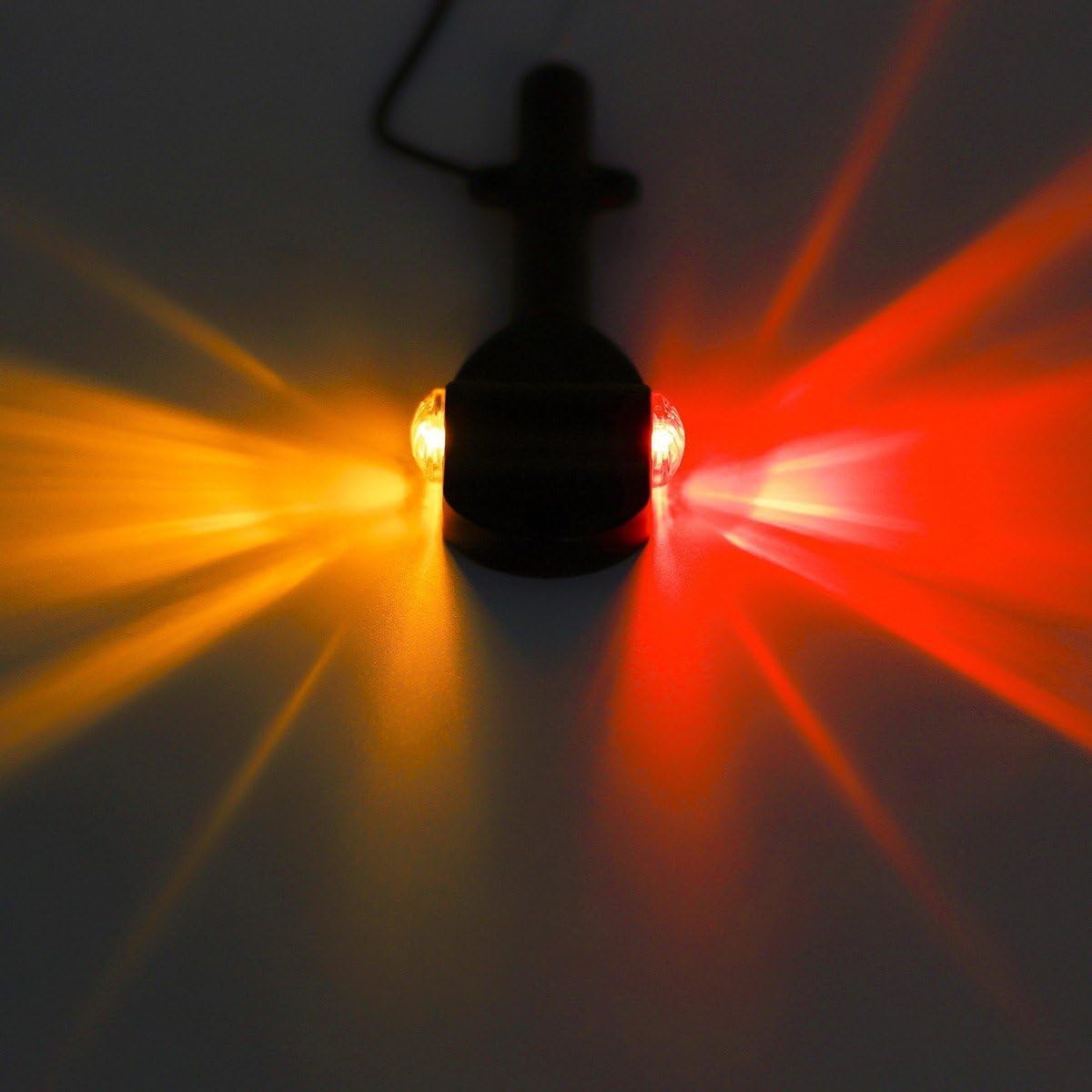

Amber Front and Red Rear Lighting

Each assembly combines one forward-facing amber lamp and one rearward-facing red lamp. The set contains matched left and right assemblies.

IP68-Rated Construction

The assemblies provide IP68 ingress protection under the model’s specified immersion conditions. Refer to the corresponding test documentation for depth and duration.

Preassembled and Prewired

The LED lamps are already installed and wired within the housings, simplifying component preparation during trailer assembly.

Compact Fender-Mount Design

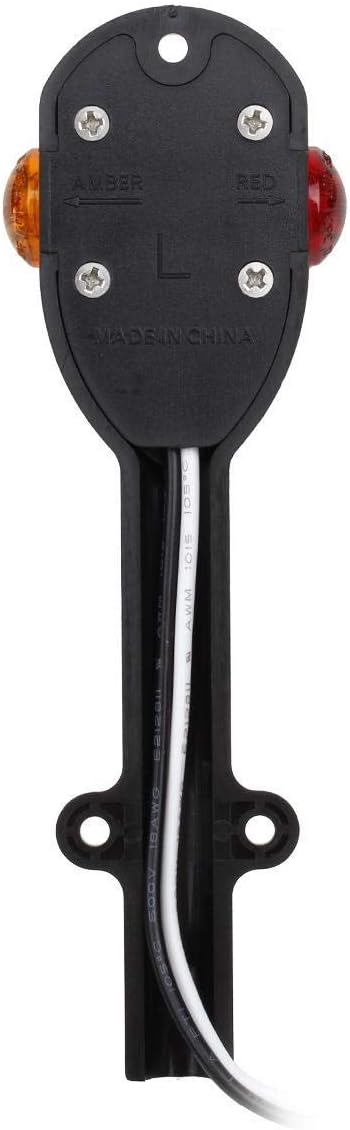

The black plastic housings accommodate 3/4-inch round LED lamps. Three mounting holes secure each assembly to a suitable fender surface.

DOT/SAE Compliance

DOT/SAE-compliant assemblies are available for buyers requiring documented lighting performance. Match the model-specific compliance records to the intended vehicle application.

Certificates

$PD3H6(_{9B@P[`267[[_{BN$

Get a quote

Does IP68 also establish saltwater corrosion resistance?

No. Ingress protection and corrosion resistance are separate performance characteristics. Saltwater applications require confirmation of the relevant materials and corrosion-test results.

Are the lamps already wired?

Yes. Each assembly is supplied fully assembled and prewired. Connection to the trailer’s electrical circuit is still required according to the supplied wiring instructions.

How are the assemblies mounted?

Each assembly uses three mounting holes. Check the fender profile, hole positions and wire-routing clearance before installation. Mounting screws are not included.

What is included in the set?

The set includes one left fender light assembly and one right fender light assembly. Each has amber forward-facing and red rearward-facing lighting.

What documentation should OEM buyers request?

Request the model-specific dimensional drawing, wiring instructions, IP68 test conditions and DOT/SAE compliance records. Confirm these documents against the intended installation and destination market.
