87104W
12V Pre-Wired 14-LED Trailer Light Kit with EN 7-Pin Plug E mark approval
| Specification | Details |
| Operating Voltage | 12V DC |
| LED Quantity | 14 High-Intensity LEDs per lamp |
| LED Service Life | > 50,000 Hours |
| Color Temperature | 3000K – 4000K |

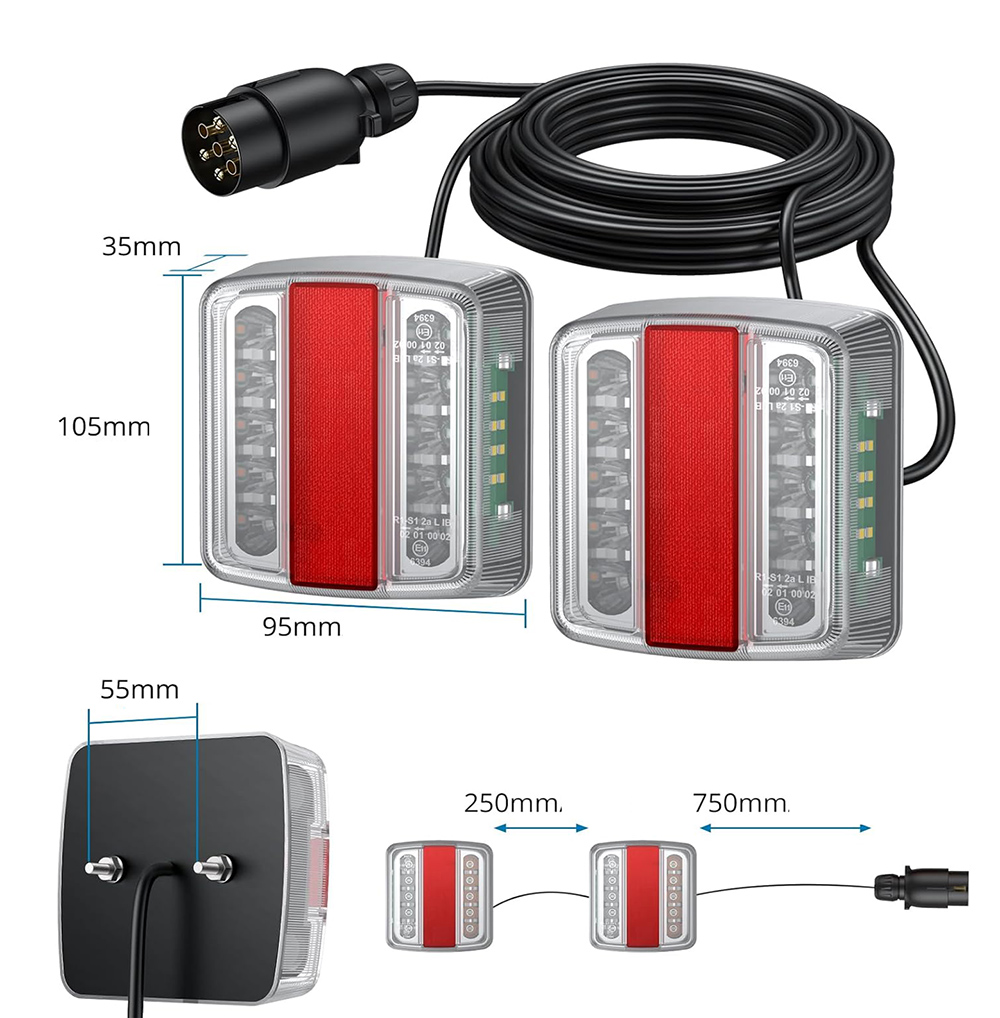

| Dimensions (L x W x H) | 10.5cm x 9.8cm x 3.7cm (Approx. 4.13″ x 3.85″ x 1.45″) |
| Mounting Hole Pitch | 5.5cm (Standard rear stud mounting) |
| Housing Material | Impact-Resistant ABS Plastic |
| Waterproof Rating | IP65 (Protected against dust and low-pressure water jets) |
| Harness Length | 10 Meters Total (2.5M + 7.5M configuration) |
| Connector Type | Standard EN 7-Pin Round Plug (ISO 1724) |
| Illumination Colors | Red (Stop/Tail), Yellow/Amber (Turn), White (Number Plate) |
| Vehicle Fitment | Universal fit for DC 12V Trucks, Trailers, Vans, Buses, and RVs |
The included EN 7-Pin socket is pre-wired according to standard European towing configurations for immediate plug-and-play installation:
Pin 1 (Yellow Wire): Left Turn Signal
Pin 2 (Blue Wire): Anti-Fog Light
Pin 3 (White Wire): Ground / Negative (-)
Pin 4 (Green Wire): Right Turn Signal
Pin 5 (Brown Wire): Right Position / Tail Light
Pin 6 (Red Wire): Stop / Brake Light
Pin 7 (Black Wire): Left Position / Tail Light (Note: For 6-wire systems, this can be bridged with Pin 5)
This versatile lighting kit is engineered for universal compatibility with any DC 12V system. It is the perfect replacement or upgrade part for:
Utility and Cargo Trailers
Commercial Trucks and Vans
Caravans and RVs
Agricultural Tractors and Buses
Certificates
If you are tired of the hassle of frequently replacing burnt-out halogen tail lamps and dealing with complex, messy wiring, a pre-wired LED solution is the industry standard upgrade.
This 12V 14-LED Trailer Light Kit provides a 100% plug-and-play experience. Designed for universal DC 12V vehicles, it comes equipped with a comprehensive 10-meter cable (2.5M + 7.5M configuration) and a pre-installed EN 7-Pin plug, drastically reducing installation time for trucks, utility trailers, vans, and buses.
