87103W
12V Multi-Function Square LED Trailer Tail Light | 4-in-1 Stop/Turn/Tail/Reverse |IP67 Waterproof E-Mark Approved
| Specification | Details |
| Operating Voltage | 12V DC |
| Total LED Count | 18 High-Intensity LEDs |
| LED Configuration | 5 Red (Stop/Tail), 5 Amber (Turn), 8 White (License Plate) |
| Housing Material | ABS Plastic (Durable, impact-resistant base) |
| Lens Material | PMMA (Polymethyl Methacrylate – High light transmittance, UV resistant) |
| Waterproof Rating | IP67 (Dust-tight and protected against temporary submersion) |
| Current Certifications | E-Mark (ECE Regulations) |
| Vehicle Compatibility | Caravans, utility trailers, tractors, trucks, boat trailers, and vans |

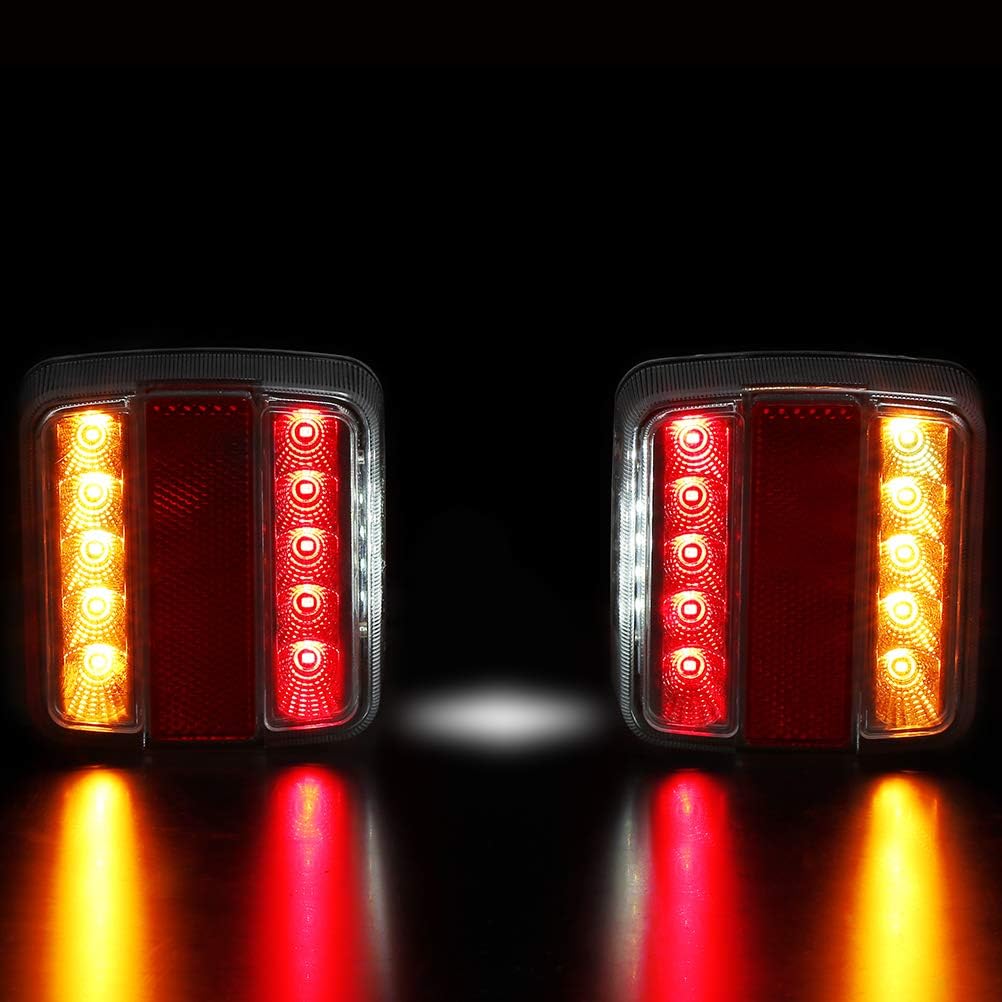

5-in-1 Integrated Lighting System The unit is engineered to maximize rear-end visibility by combining five essential functions into one compact footprint:
Tail/Position Light: Emits a steady red glow for nighttime visibility.
Stop/Brake Light: Red LEDs illuminate at peak intensity during braking.
Turn Signal: Features dedicated amber LEDs for distinct directional signaling.
License Plate Illumination: 8 side-facing white LEDs project a bright beam downwards/sideways to illuminate the vehicle’s license plate.
Passive Retro-Reflector: A prominent, central vertical red reflective strip ensures the trailer remains visible to approaching vehicles even when the lights are completely powered off.

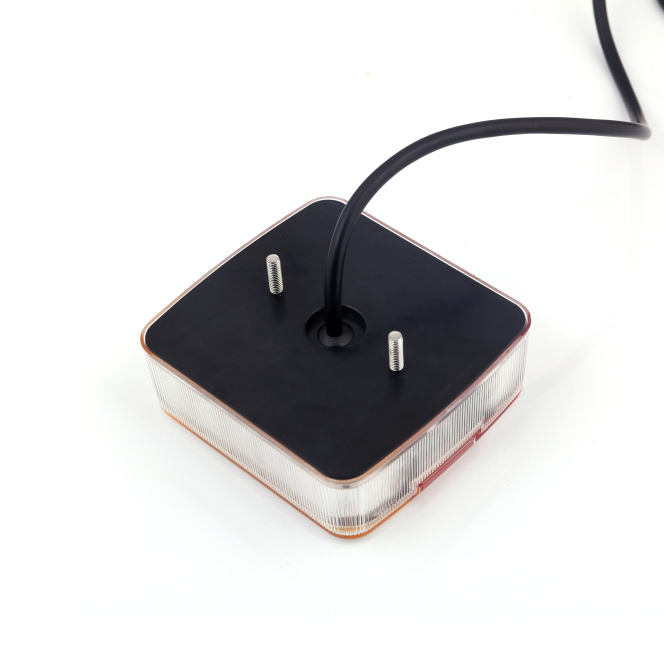

The light comes pre-wired with a 4-core cable for straightforward installation using pre-installed mounting screws.
Wiring Color Code:
White Wire: Negative (-) / Ground
Black Wire: Tail Light (Position) + License Plate Light
Red Wire: Stop / Brake Light
Yellow Wire: Turn Signal (Indicator)
Certificates
Why Choose Our 100% Potted LED Trailer Lights?
Our 100% potted LED trailer lights use premium epoxy resin to fully encapsulate the internal PCB. This creates an IP67 submersible waterproof seal, completely eliminating moisture ingress and vibration damage. Fleet managers choose our potted lights to drastically reduce maintenance costs and prevent roadside failures in harsh commercial environments.
