2” Round LED Marker Light | Clearance Side Marker Lamp IP67 DOT SAE FMVSS108 12V/24V

87006R

2” Round LED Marker Light | Clearance Side Marker Lamp IP67 DOT SAE FMVSS108 12V/24V
Technical Specifications

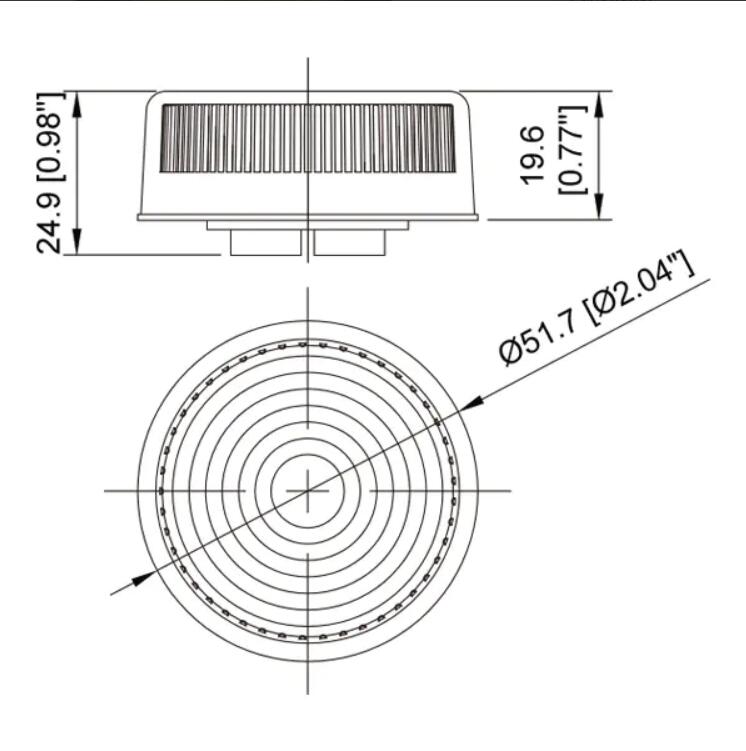

- Size: 2” round
- LED Type: 1 × SMD LED
- Voltage Options: 12V / 12–24V multi-voltage (select models)
- Current Draw: 0.05A at 13.8V

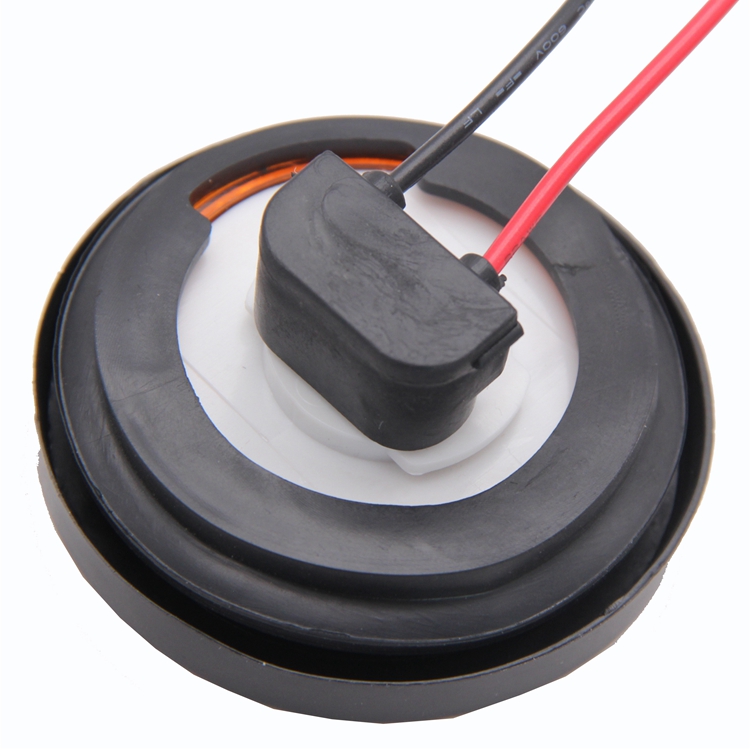

- Mounting: Grommet mount
- Connector: 2-pin standard plug (right angle compatible)
- Lens Material: Polycarbonate (PC)
- Housing: Ultrasonically welded sealed body
- Waterproof Rating: IP67
- Certification: DOT FMVSS108 / SAE compliant
- Rating: P2 approved
Key Features

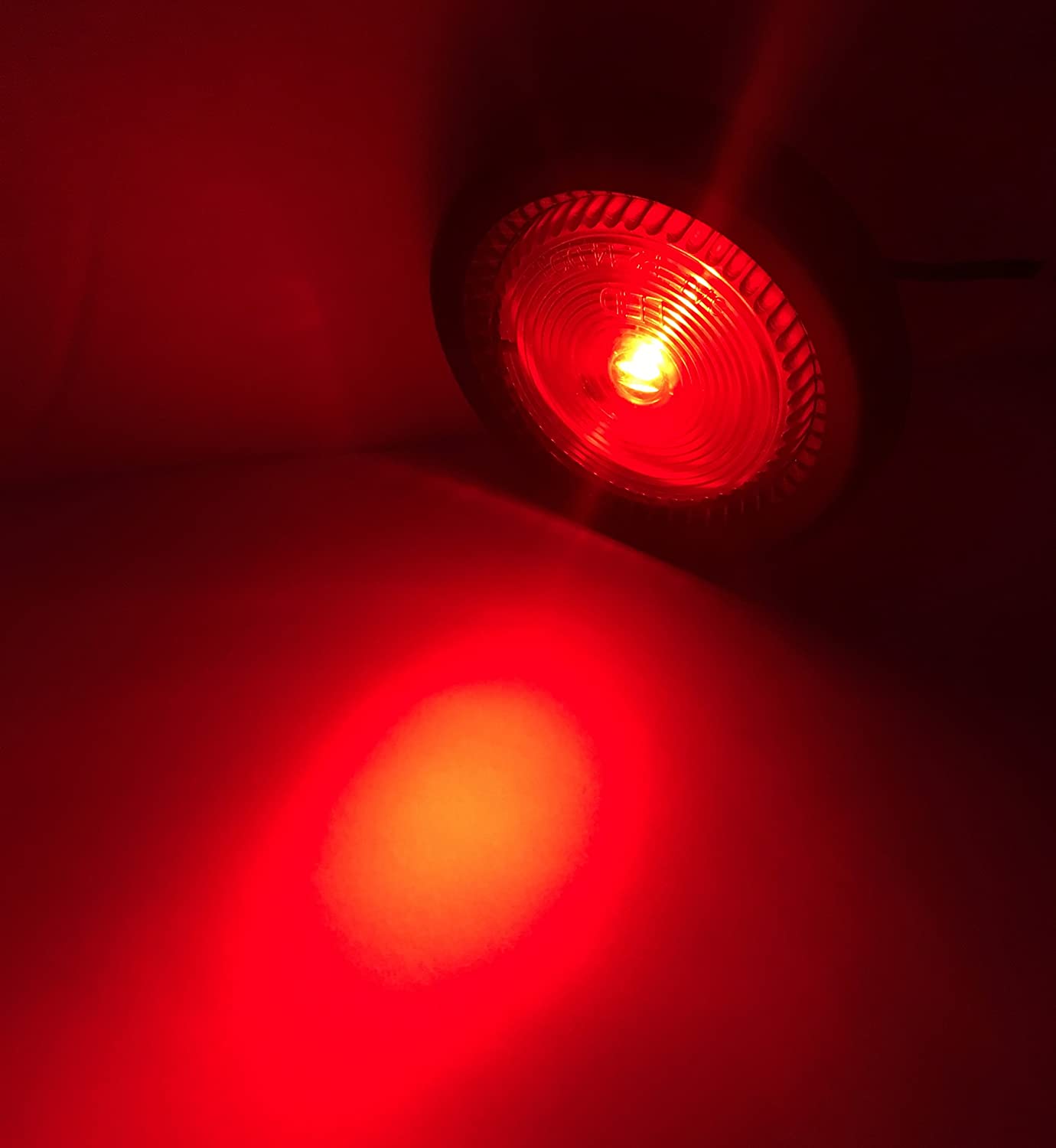

- Ultra-Bright SMD LED Technology: High-intensity single LED for clear visibility
- Multi-Function Use: Acts as clearance light, side marker light, or identification light
- Compact 2” Round Design: Universal fit for trailers, trucks, RVs, and utility vehicles
- IP67 Waterproof Rating: Fully sealed for submersible and harsh weather use
- DOT / SAE Compliant: Meets FMVSS108 safety standards for road legality
- Durable Construction: PC lens and housing ultrasonically welded for permanent sealing
- Low Power Consumption: Only 0.05A current draw at 13.8V
- Easy Installation: Grommet mount with standard 2-pin plug compatibility
Applications
- Trailer clearance lighting systems
- Truck side marker lights
- RV and camper lighting upgrades
- Utility and cargo trailers
- Agricultural and industrial vehicles
Certificates

$PD3H6(_{9B@P[`267[[_{BN$

Get a quote

Why Choose Us?

With a stable supply chain and coordinated production process, we help customers improve order consistency, reduce sourcing risk, and maintain reliable lead times. In addition to standard products, we also provide practical OEM / ODM support, including logo printing, packaging customization, wiring configuration, specification adjustment, and market-oriented product development.
