12V/24V 7-Function LED Trailer Light Kit with 13-Pin Harness
| Specification | Technical Details |
| Operating Voltage | 12V / 24V DC (Multi-Voltage Compatible) |
| LED Quantity | 30 LEDs per lamp (60 LEDs total per pair) |

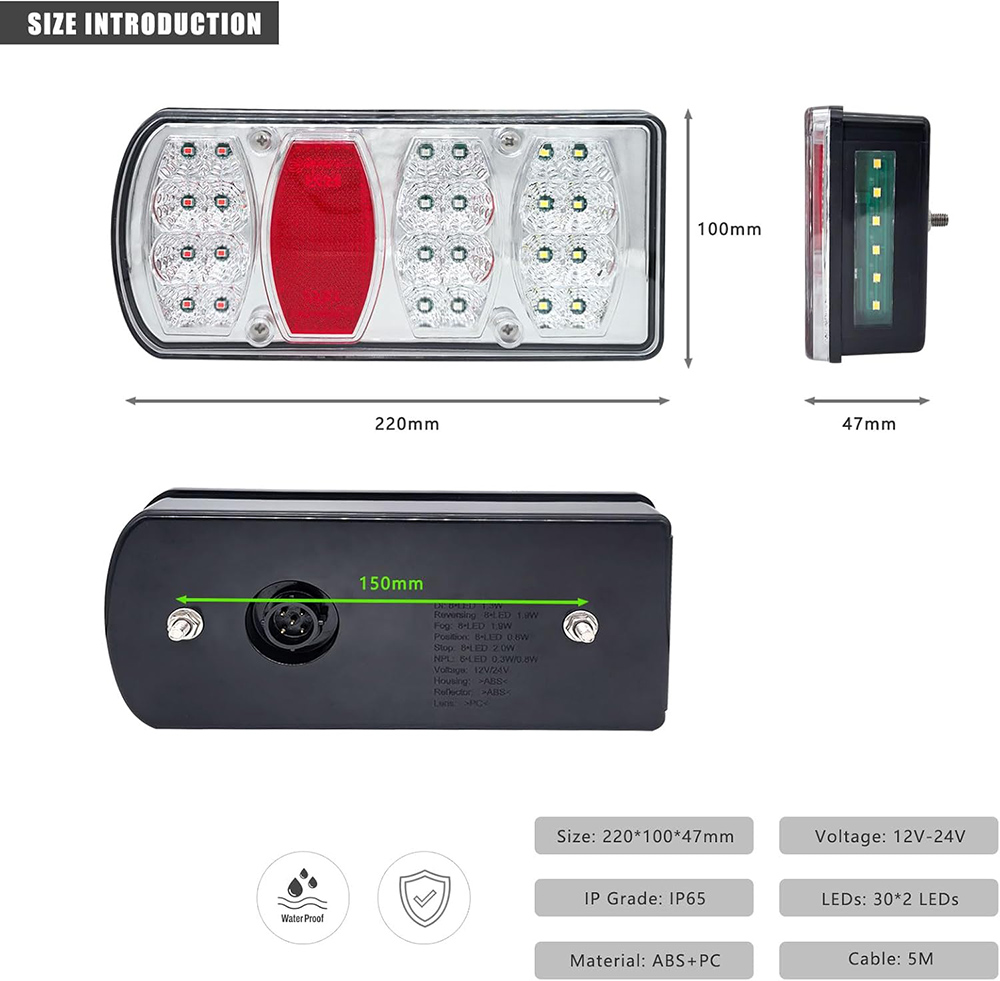

| Dimensions (L x W x H) | 223mm x 100mm x 48mm |
| Mounting Bolt Distance | 150mm (Center-to-Center) |
| Housing & Lens Material | High-Impact PC (Polycarbonate) Lens, ABS Body |
| Wiring Material | Pure Copper Cable (High Conductivity) |
| Waterproof Rating | IP65 (Weather and shock-resistant) |
| Operating Temperature | -40°C to +65°C |
| Certifications | ECE E57, EMC Approved (EU Road Traffic Compliant) |

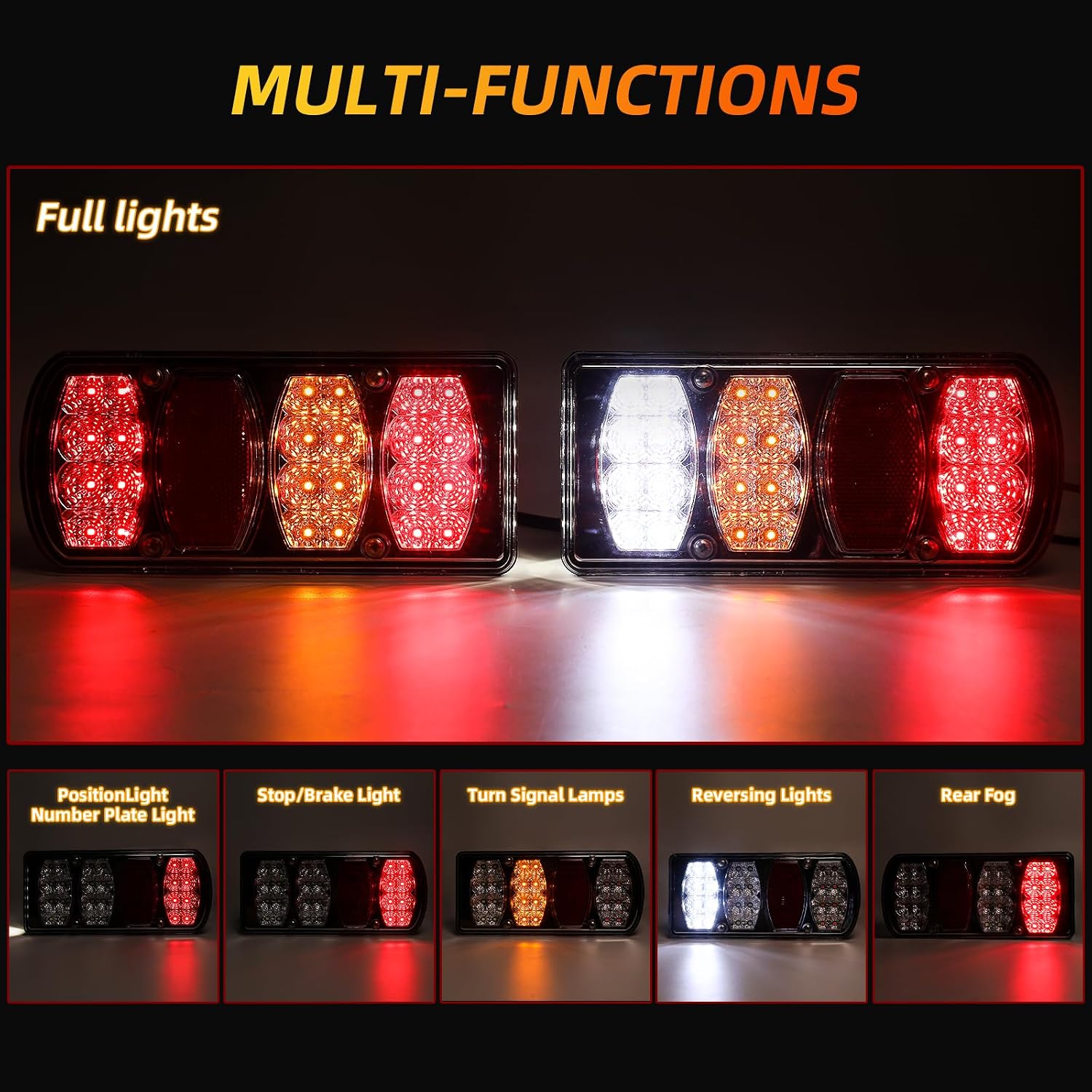

The clear “Euro-style” lens consolidates all mandatory European road signaling requirements into a single, high-efficiency unit:
Turn Signal (Indicator): 8 Yellow LEDs (1.3W)
Stop / Brake Light: 8 Red LEDs (2.0W)
Position / Tail Light: 8 Red LEDs (0.8W)
Rear Fog Light (Left Side): 8 Red LEDs (1.9W)
Reverse Light (Right Side): 8 White LEDs (1.9W)
License Plate Light: 6 White LEDs (0.3W/0.8W)
Retro-Reflector: Built-in central red reflective oval for passive nighttime visibility.
This kit eliminates complex manual wire splicing, making it highly efficient for trailer manufacturing lines or fleet upgrades:

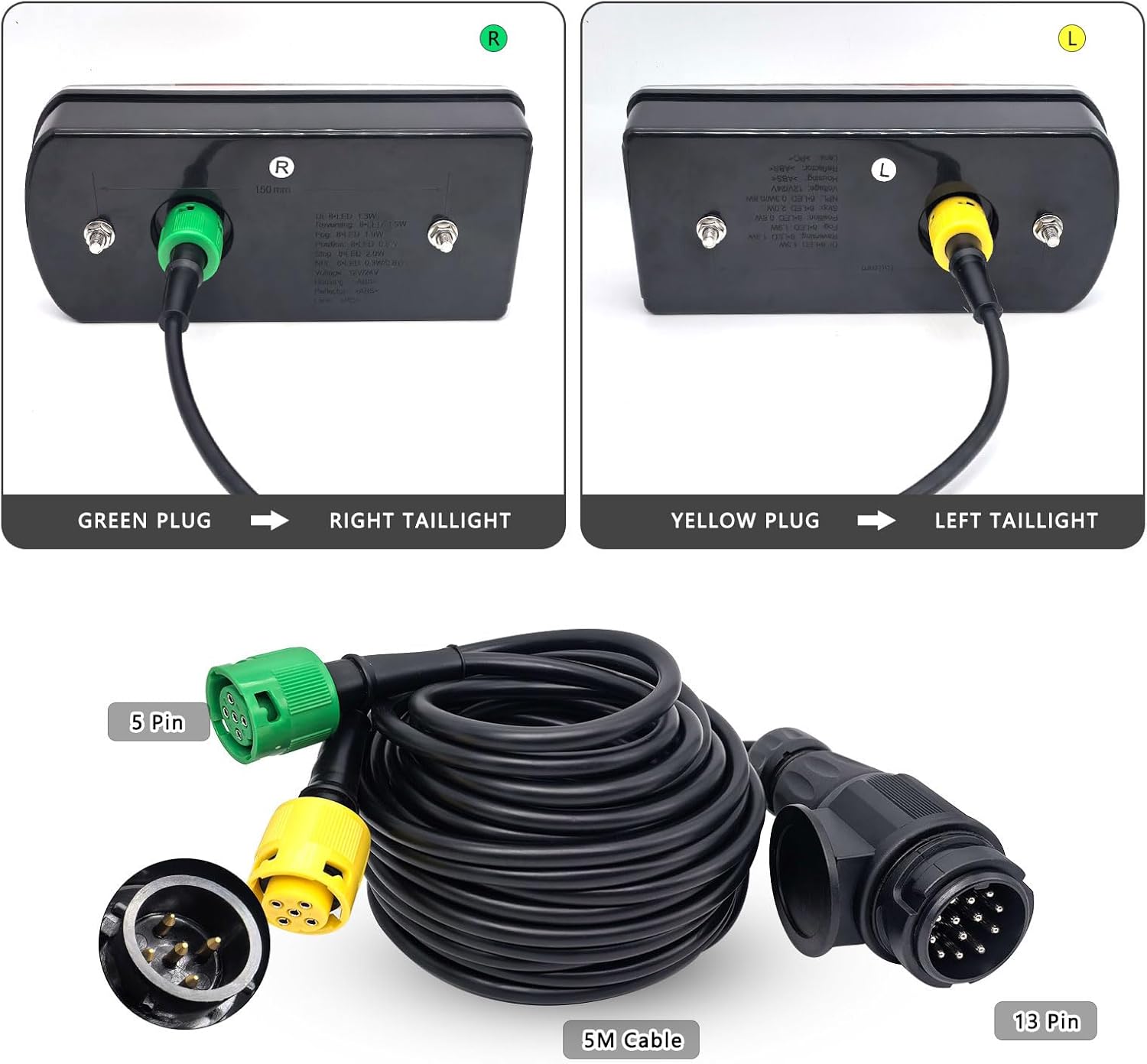

Main Towing Harness: Includes a 5.5-meter pre-wired 5-core cable terminated with a standard European 13-Pin Plug.
Quick-Connect Bayonets: The lamps feature 5-Pin Bayonet connectors for instant, error-free attachment (Yellow connector for the Left lamp, Green connector for the Right lamp).
Auxiliary Expansion: Features an extra 25cm 2-core backup cable, allowing users to easily daisy-chain additional clearance markers, side lights, or extra license plate lights.
Certificates
For heavy-duty trucks, caravans, and commercial trailers, a pre-wired 13-pin system is far superior to old 7-pin standard kits. It supports modern ECE E57 mandatory functions like Reverse and Fog lights, which are required for legal road traffic in Europe. Furthermore, with an IP67 waterproof rating and an operating temperature of -40℃ to +65℃, the sealed bayonet system prevents water ingress, completely eliminating the corrosion and short circuits associated with traditional hand-spliced wires.
