86109
E-Mark Waterproof IP 67 ECE R10 Approved LED Trailer Lighting Kit 13-Pin 12V–24V
● E-Mark & R10 approved – road legal and EMC compliant for EU markets

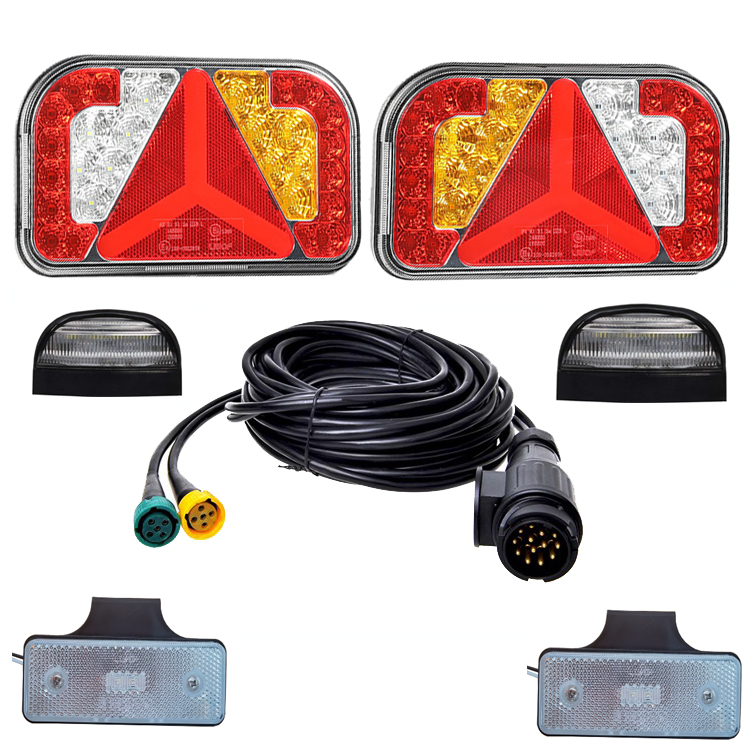

● Complete LED trailer lighting kit with rear, front, and number plate lights
● 7 lighting functions: stop, tail, indicator, reflector, number plate, reverse & fog
● 100% copper Double 5-core wiring harness, 5.5m length, supplied with 13-pin plug 87811
● Two LED front clearance marker lights 85107 with 4m cable
● Two LED number plate lights 85140 with 2m cable
● 26 high-brightness LEDs per rear light for excellent visibility and safety
● Wide voltage range: 12V–24V, suitable for trailers and commercial vehicles
● IP67 waterproof rating for all-weather and outdoor use
● 5-pin fast connector option for flexible installation and OEM integration
● Robust sealed housing for long service life

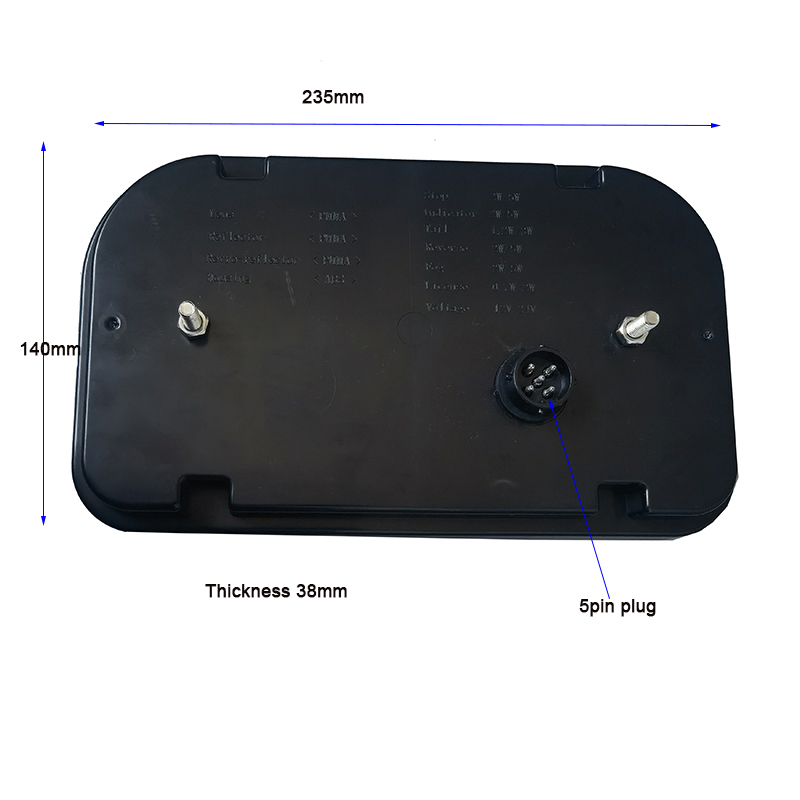

● Compact rear light size: 235 × 140 × 38 mm
| Item | Specification |
| Product Type | LED Trailer Lighting Kit |
| Approval | E-Mark, R10 |
| Voltage | 12V – 24V |
| Lighting Functions | Stop / Tail / Indicator / Reflector / Number Plate / Reverse / Fog |
| LEDs per Rear Light | 26 pcs |
| Waterproof Rating | IP67 |
| Wiring Harness | Double 5-core |
| Harness Length | 5.5 m |
| Plug Type | 13-Pin |
| Connector Option | 5-Pin Fast Connector |
| Rear Light Size | 235 × 140 × 38 mm |
| Included Lights | Rear Lights + Front Markers + License Plate Lights |
| Market | Europe (EU) |
● Utility and box trailers
● Caravans and camper trailers
● Commercial and industrial trailers
● Boat and leisure trailers
● OEM trailer manufacturing and retrofit projects
Certificates
Why Choose Us?
With a stable supply chain and coordinated production process, we help customers improve order consistency, reduce sourcing risk, and maintain reliable lead times. In addition to standard products, we also provide practical OEM / ODM support, including logo printing, packaging customization, wiring configuration, specification adjustment, and market-oriented product development.
