81003 ERA 2,000 lbs Trailer Idler Hub Kit (5 on 4 1/2″ Bolt Pattern) – 1 1/16″ L44649 Bearing Cast Iron Hub Assembly Wholesale
Commercial-Grade ERA 2,000 lbs Cast Iron Trailer Idler Hub Assembly with 5-on-4.5" Bolt Pattern, Pre-Pressed Races & Complete L44649 Bearing Kit | Direct Factory OEM & Bulk Supply

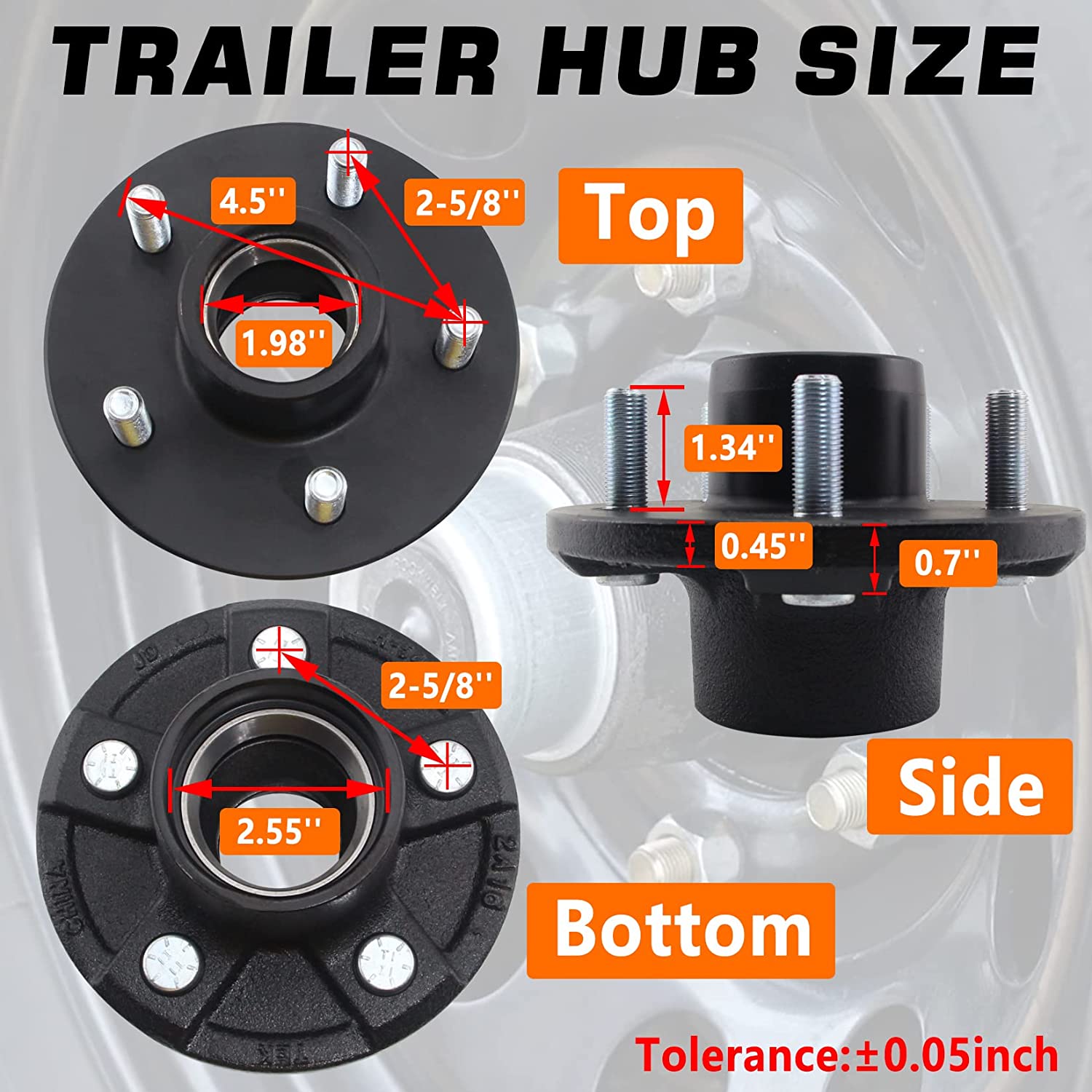

| Technical Specification | Parameters & Engineering Details |
| Brand Name | ERA |
| Product Type | Complete Trailer Idler Hub Assembly Kit (Non-Braked Axle Hub) |
| Rated Axle Capacity | 2,000 lbs (Approx. 900 kg Axle Rating) |
| Bolt Circle Pattern | 5 on 4 1/2″ (5 on 4.5″ PCD with Pre-Pressed 1/2″-20 Wheel Studs) |
| Total Hub Height | 4 1/8″ (Approx. 105mm Overall Height) |
| Flange Outer Diameter | 6 1/2″ (Approx. 165mm Large Flange Design) |
| Spindle Fitment | Small-Capacity Trailer Axles with 1 1/16″ (27mm) Straight Spindles |
| Inner & Outer Bearings | Precision L44649 Bearings Included (Matched 1 1/16″ Inner Diameter) |
| Bearing Races | Factory Pre-Pressed Inner and Outer Races |
| Grease Seal Dimensions | 1.25″ ID (31.75mm) Double-Lipped Marine Grease Seal Included |
| Dust Cap / Grease Cap | 1.98″ Outer Diameter Dome-Shaped Steel Dust Cap Included |
| Wheel Size Compatibility | Engineered for 13″, 14″, and 15″ Wheels |
| Hub Material & Finish | Heavy-Duty Cast Iron with Anti-Rust Black Powder-Coated Finish |
| Fastener Hardware Included | 5 Matching 1/2″-20 60° Cone Trailer Lug Nuts |
| Target Applications | Caravans, Marine Boat Trailers, Box Utility Trailers, Light Commercial Rigs |
| B2B Supply Capabilities | Pre-Greased Assembly Options, Galvanized Marine Hubs, Bulk Pallet Packaging |
Key Features
Turnkey Complete Hub Replacement Kit: Supplied complete with L44649 inner/outer bearings, double-lipped grease seal, dome dust cap, and 1/2″-20 lug nuts, eliminating parts-sourcing guesswork and reducing trailer assembly labor.
Heavy-Duty Cast Iron Construction: Cast from high-tensile structural gray iron and coated with an industrial black powder finish to resist corrosion, road grime, salt spray, and physical shock under 2,000-lb axle payloads.
Factory Pre-Pressed Bearing Races & Studs: Bearing races and grade-8 wheel studs are hydraulic-pressed at the factory to guarantee precision concentricity, preventing premature bearing fatigue, runout, or wheel wobble.
Over-Sized 6 1/2″ Flange for 13″+ Wheels: The reinforced 6.5-inch diameter flange provides high torsional rigidity and a flat mating surface, allowing trailers to run standard 13-inch, 14-inch, or larger highway wheel assemblies securely.
Double-Lipped Spindle Seal & Dome Cap: Features a 1.25″ ID double-lipped rubber grease seal paired with a 1.98″ dome cap to keep lubricants in while sealing out road grit, rain, and boat ramp water splashback.
Certificates
Q1: What trailer axle spindles are compatible with this ERA 2,000-lb idler hub?
A: This hub is engineered specifically for 2,000-lb trailer axles utilizing 1-1/16″ (1.0625″) straight spindles. It utilizes matching L44649 inner and outer roller bearings with a 1.25″ seal surface diameter.
Q2: What is the operational advantage of the larger 6 1/2″ flange diameter?
A: The expansive 6.5-inch flange increases backplate contact support and structural strength. This allows light trailers to run 13-inch, 14-inch, and 15-inch wheel and tire combinations without flange deflection or bolt stress.
Q3: Can this idler hub assembly be used on marine boat trailers?
A: Yes. The hub features a rust-inhibiting black powder-coated finish and includes a double-lipped marine grease seal that grips the spindle firmly to prevent water ingress during launch ramp submersions. Regular grease service and cap checks ensure extended bearing life in marine environments.
Q4: Are the bearing races already installed in the hub body?
A: Yes. The inner and outer bearing races (cups) and the 1/2″-20 wheel studs are precision hydraulic-pressed into the cast iron hub during factory production, saving time and ensuring proper alignment during installation.
Q5: What OEM and distributor customization options are provided by ERA?
A: ERA offers comprehensive B2B solutions, including hot-dip galvanized marine finishes, factory pre-greased bearing options, customized retail box packaging, and bulk container-load palletization for trailer assembly plants.
