81002 ERA 4″ Bolt Pattern Trailer Hub with 1″ Round Spindle Kit (1250 lbs / 2000 lbs Pair) – Complete Idler Hub Assembly Wholesale
Commercial-Grade ERA 4-on-4" Trailer Idler Hub & 1-Inch Round Spindle Combo Kit with Bearings, Seal, Cap & Lug Nuts for Boat, Utility & Caravan Trailers | Direct Factory OEM & Bulk Supply
| Technical Specification | Parameters & Engineering Details |
| Brand Name | ERA |
| Product Type | Complete Trailer Idler Hub with Spindle Assembly Kit |
| Bolt Circle Pattern | 4 on 4″ (4-Lug on 4″ PCD with Pre-Pressed Wheel Studs) |
| Spindle Profile & Size | 1″ (25.4mm) Solid Round Straight Spindle (BT8 Profile) |
| Rated Load Capacity | 1,250 lbs per Single Hub / 2,000 lbs per Matched Pair |
| Bearing Kit Included | Precision Matched 1″ Inner Bearing & Outer Bearing (L44643 Set) |
| Bearing Races | Factory Pre-Pressed Inner and Outer Races |
| Grease Seal Included | Heavy-Duty Double-Lipped Marine Grease Seal |
| Dust / Grease Cap | Pressed-Steel Corrosion-Resistant Dome Grease Cap Included |
| Fastener Hardware Included | 4 Matching Grade-5 / Grade-8 Trailer Wheel Lug Nuts |
| Hub Material & Finish | High-Tensile Cast Iron / Structural Steel with Anti-Rust E-Coat / Black Powder Finish |
| Spindle Material | High-Yield Cold-Rolled Carbon Steel for Easy Axle Tube Welding |
| Target Applications | Jet Ski (PWC) Trailers, Light Boat Trailers, Utility Box Trailers, Small Caravans |
| B2B Supply Capabilities | Pre-Greased Assembly Options, Hot-Dip Galvanized Marine Hubs, Bulk Pallet Packaging |
Key Features

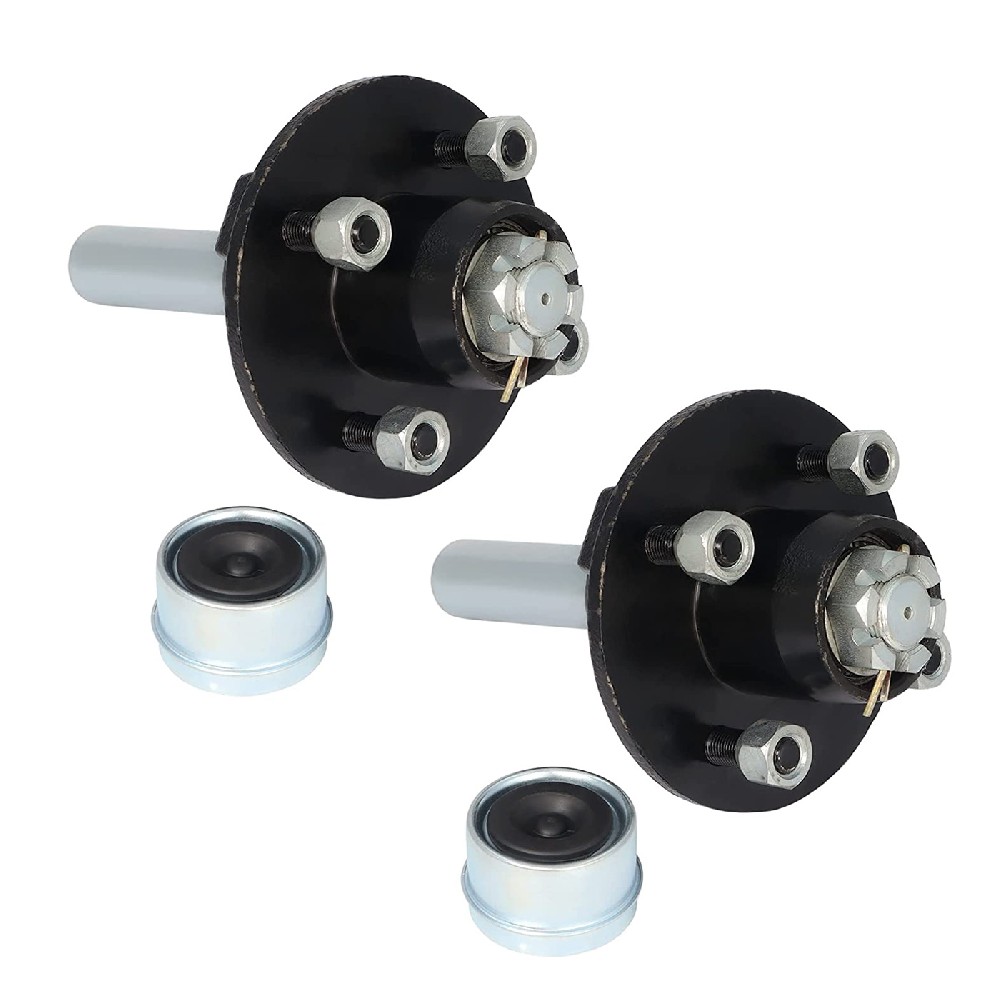

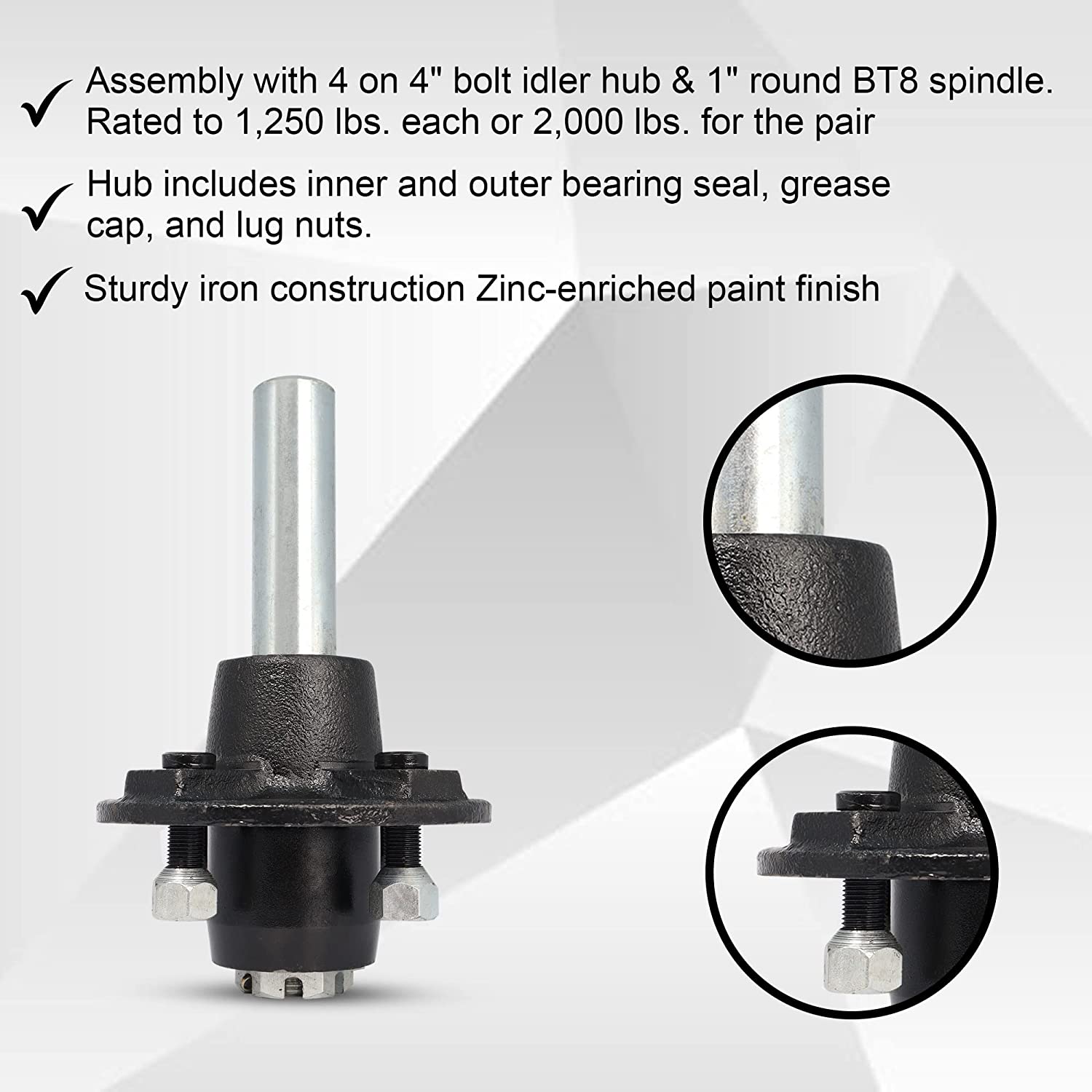

Turnkey Complete Hub & Spindle Kit: Supplied complete with 4-on-4″ idler hub, 1″ solid round spindle, inner/outer bearings, grease seal, dust cap, and lug nuts—ready for new axle fabrication or complete suspension overhaul.
1,250 lbs Hub / 2,000 lbs Axle Rating: Engineered for standard 2,000-lb trailer axle configurations, handling up to 1,250 lbs per side with high stability and structural rigidity under dynamic highway travel.
Machined 1″ Round Steel Spindle: Precision-turned from high-strength carbon steel, providing a smooth bearing surface and a standard round stub designed for seamless welding into square or round axle tubes.
Factory Pre-Pressed Bearing Races: Bearing races (cups) are hydraulic-pressed into the hub at the factory, ensuring true concentricity, eliminating bearing misalignment, and preventing wheel vibration at speed.
Corrosion-Resistant Marine Protection: The cast hub is shielded by a durable rust-inhibiting coating, while the included double-lipped grease seal keeps road grime and moisture out during freshwater and saltwater ramp launches.
Certificates
Q1: What trailer applications are best suited for this ERA 4-inch hub and 1″ spindle kit?
A: This kit is designed for light-to-medium trailer applications, including single-axle jet ski (PWC) trailers, small aluminum fishing boat trailers, utility garden trailers, tear-drop camper rigs, and custom off-road utility carts requiring a 2,000-lb axle capacity.
Q2: What wheels fit the 4 on 4″ bolt pattern?
A: The 4 on 4-inch bolt circle pattern (4 lugs spaced 4 inches across from center to center) is the universal industry standard for 8-inch, 10-inch, and 12-inch trailer wheels commonly mounted on light utility and boat trailers.
Q3: How is the 1″ round spindle installed onto an axle tube?
A: The round stub end of the spindle slides into standard axle tubing (round or square) and is secured via perimeter structural welding or rosette plug welds by a qualified trailer builder or fabricator.
Q4: Can this hub and spindle kit be used in marine environments?
A: Yes. The assembly includes a double-lipped marine-grade grease seal that seals tightly around the spindle shoulder, shielding bearings from water contamination during boat ramp launch and retrieval. Routine grease packing is recommended for saltwater usage.
Q5: What OEM and wholesale options are provided by ERA for distributors?
A: ERA offers full B2B customization, including zinc-plated or hot-dip galvanized marine finishes, factory pre-greased hubs, custom spindle shaft lengths, retail blister packaging, and export palletization for assembly plants.
