Products

• Product Type: Serrated Heavy Duty Jockey Wheel

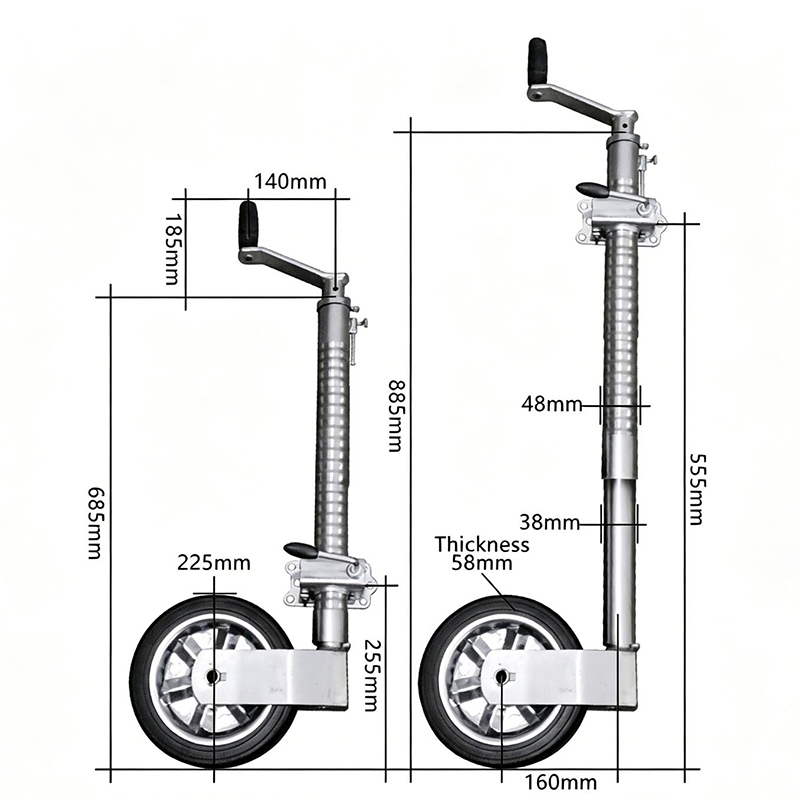

• Tube Diameter: 48mm serrated outer tube
• Load Capacity: 500kg (static nose weight)
• Height Extension Range: 230mm
• Handle Extension: 140mm
• Wheel Size: 200 × 55mm rubber tyre
• Surface Finish: Clear Zinc Plated (enhanced corrosion resistance)
• Bearing Type: Ball-race thrust bearing system
• Safety Feature: R-clip & chain anti-rotation system
• Compatibility: 87306 cast clamp (sold separately)
• Packaging: Pallet qty 110pcs

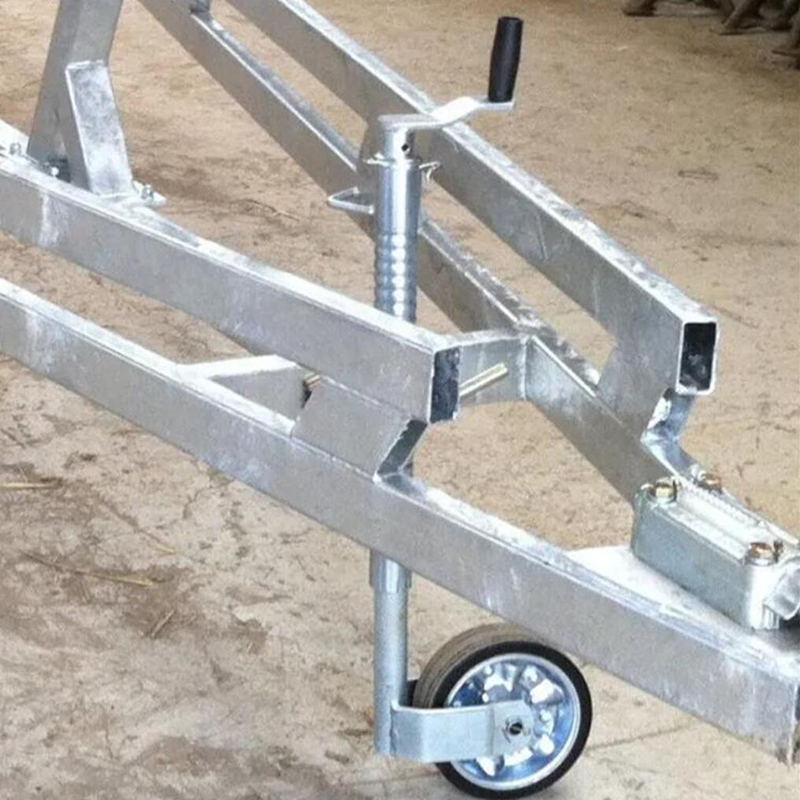

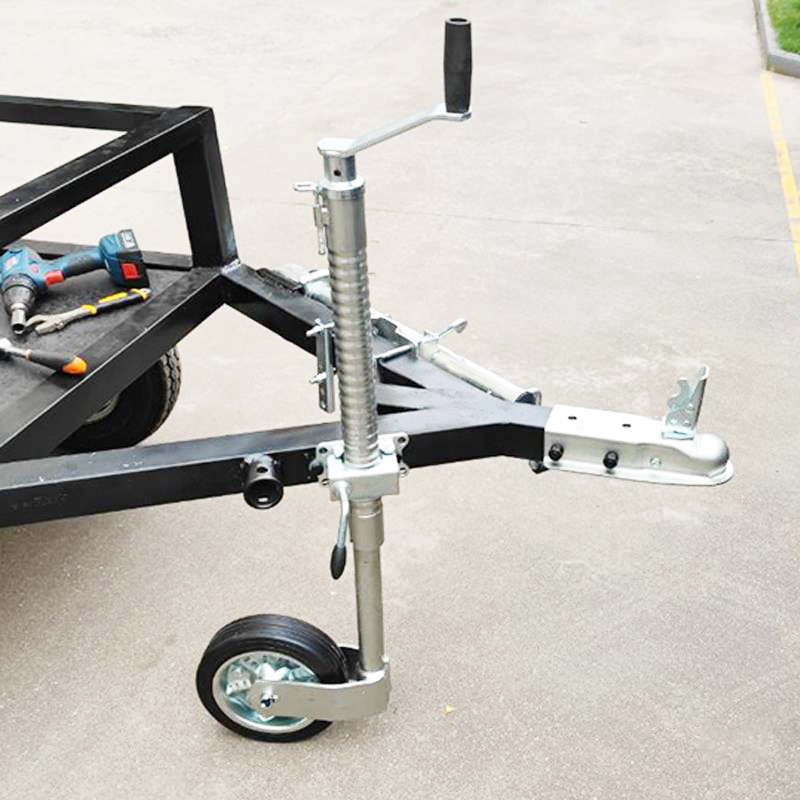

• Application: Heavy-duty trailer support and positioning system

Key Features

• Heavy Duty 48mm Serrated Jockey Wheel for up to 500kg static nose weight applications
• Serrated anti-vibration outer tube prevents slippage through the clamp
• Heavy duty ball-race thrust bearing ensures smooth and easy handle rotation under load
• Grease nipple lubrication inlet for easy maintenance and extended service life

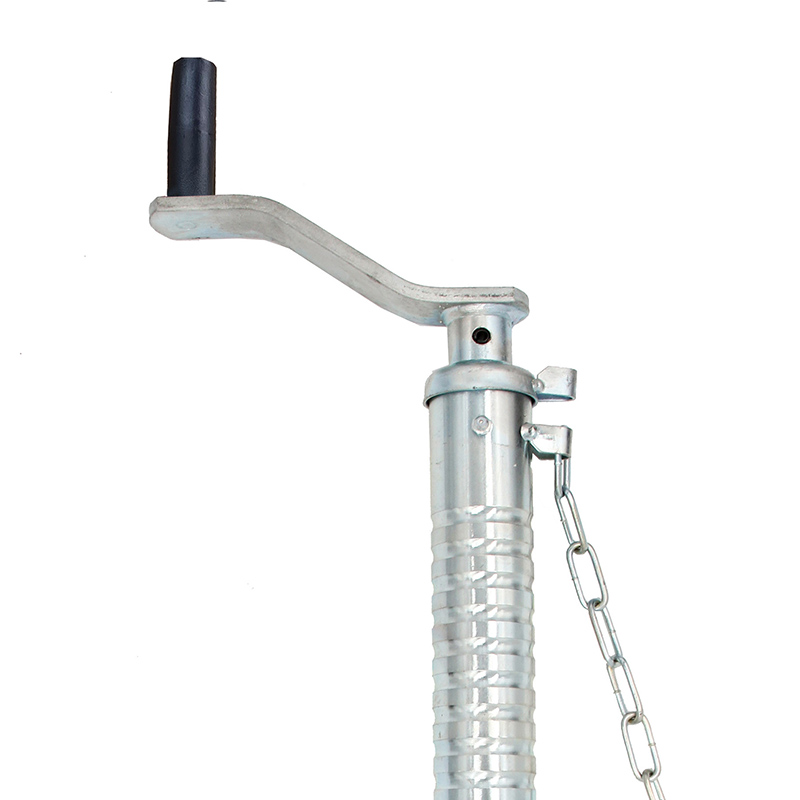

• R-clip & safety chain system prevents handle rotation during transport
• Enhanced clear zinc plated finish for superior corrosion resistance and outdoor durability

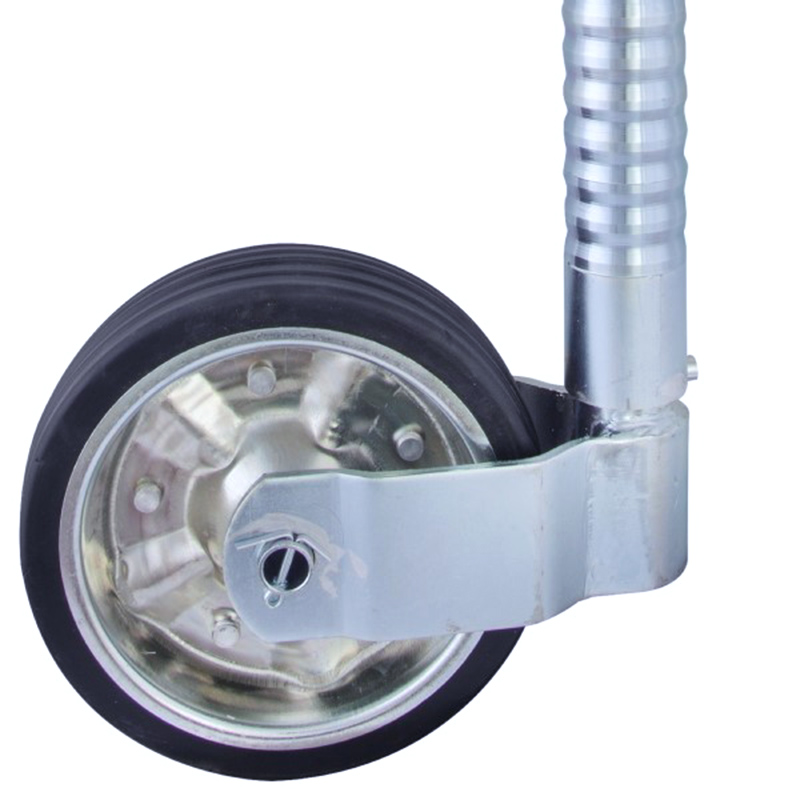

• Large 200 × 55mm rubber tyre wheel for stability and smooth rolling performance
• Supplied without clamp, compatible with 87306 cast clamp
• Designed for OEM manufacturing, wholesale supply, and replacement market

Widely use for:

• Car transporter trailers
• Horse boxes
• Livestock trailers
• Plant and machinery trailers
• Twin axle trailers
• Commercial and heavy duty trailers
